Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning THDL 4040-16T50-IQ

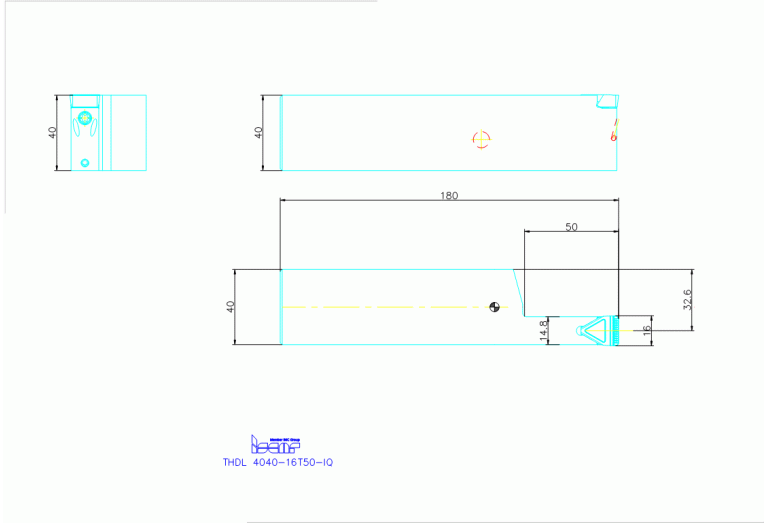

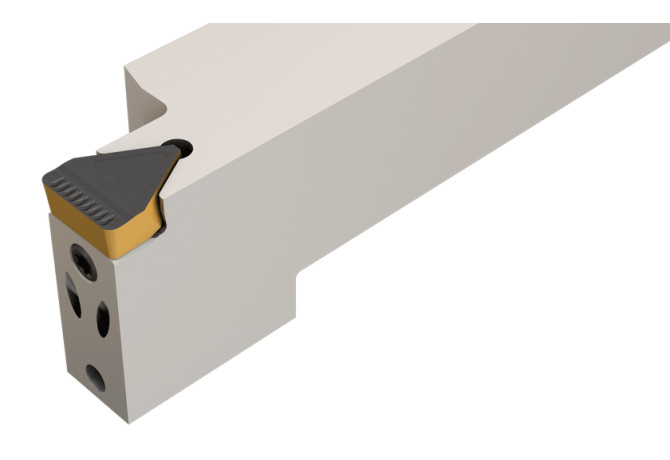

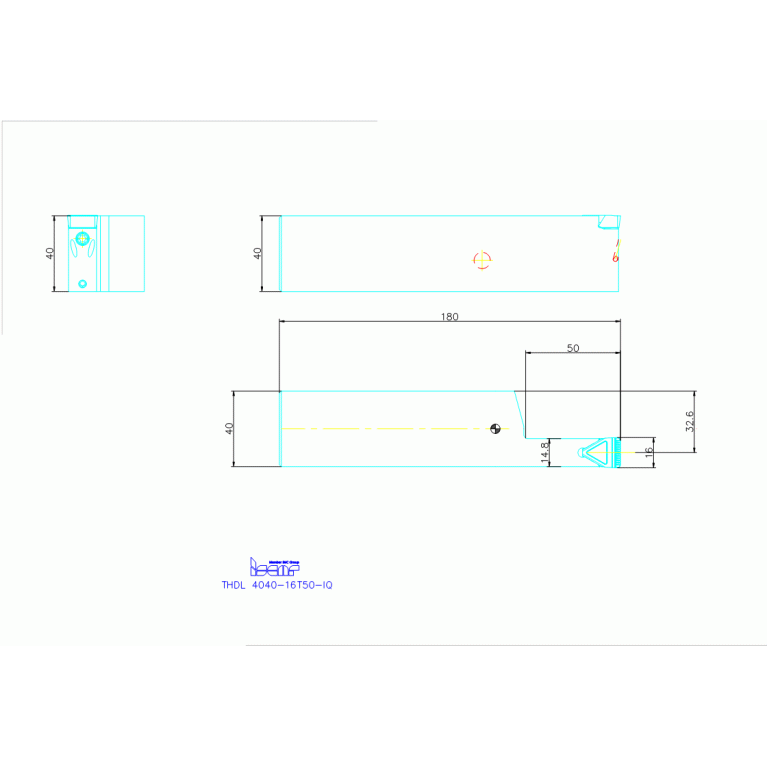

THDL 4040-16T50-IQ

Артикул: 2801997

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-62975543015084

FamilyProducts

External Holders for Wide Grooving Inserts

HAND Cutting direction

L - Left

HF Functional height

40 mm

ID Technical product number

2801997

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$62975543015084

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 B Shank width

40 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

4040

LOC-03 H Shank height

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

THDL 4040-16T50-IQ

OAL Overall length

180 mm

WF Functional width

32.6 mm

Working process

No working processes available

WT Weight of item

1.78 kg
