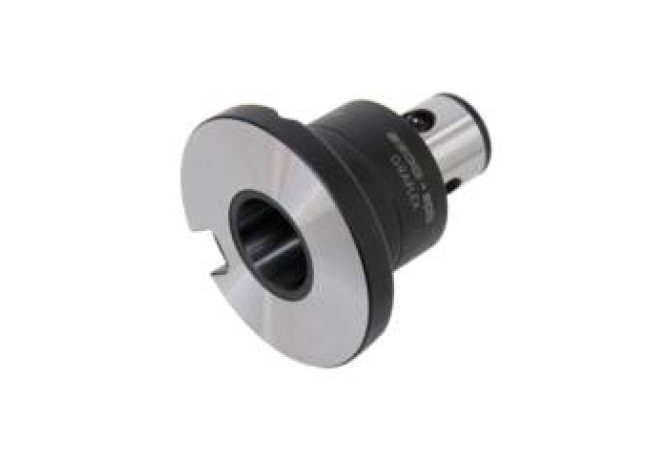

Главная Каталог продукции Toolunited 17 401-05 - Reducer, reverse design M40266A

M40266A

Артикул: 02690004

В наличии

В корзину

Описание

Характеристики

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0700

DCONWS Diameter

36 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GMS05000115

FamilyProducts

M40266A

HAND Cutting direction

N - Neutral

ID Technical product number

02690004

Interface codes

J6 / J61

ISO

GMS01G5000$$$$

ISYC Subclass

401-05 - Reducer, reverse design

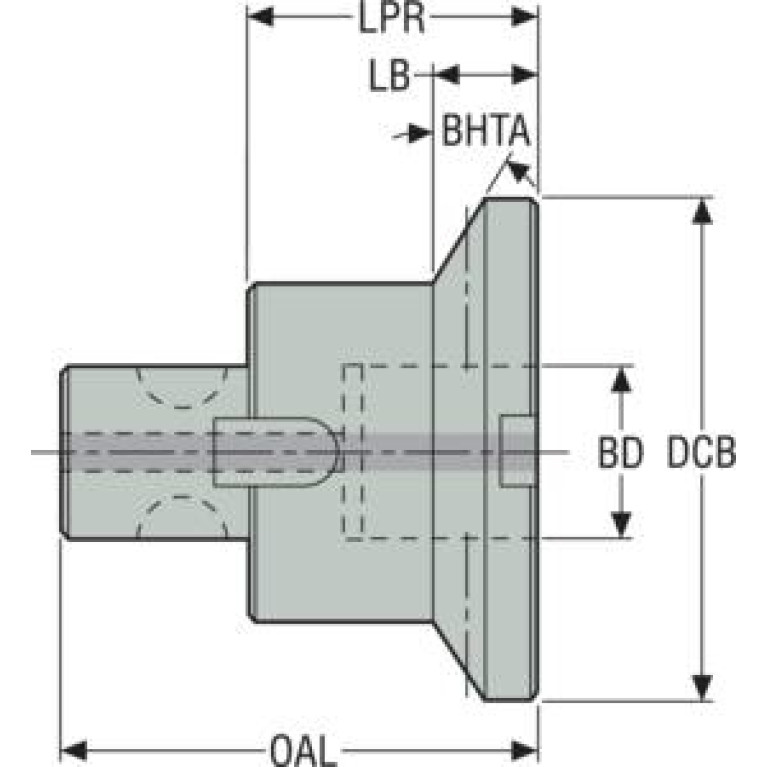

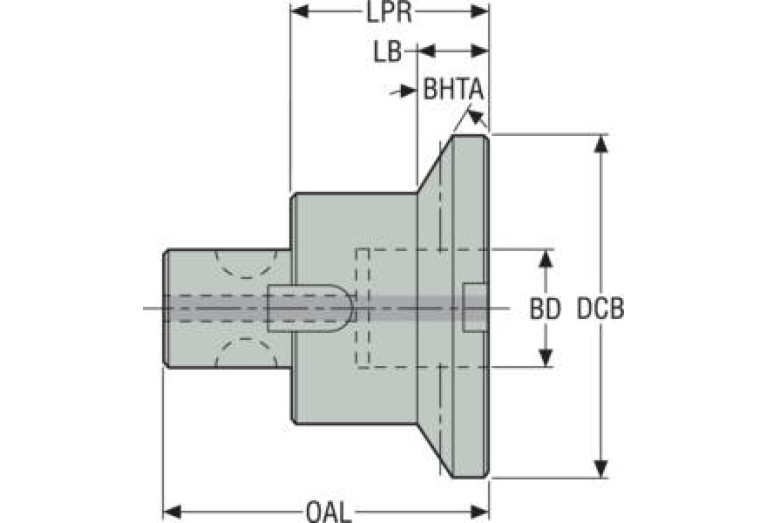

LB Body length 1

13.5 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0700

LOC-01 DCONWS Diameter

36 mm

LOC-01 ISO

GMS01G7000$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

GMS07000115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

GMS01G5000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GMS05000115

LPR Protruding length

60 mm

Name Identifying order number

M40266A

OAL Overall length

100 mm

TA Taper angle

30 Degree

WT Weight of item

1.45 kg

Диаметр корпуса (BD) / Body diameter (BD)

70 mm
