Главная Каталог продукции Toolunited 17 307-12 - Angular ball-nosed end mill TS BCM D20-T12

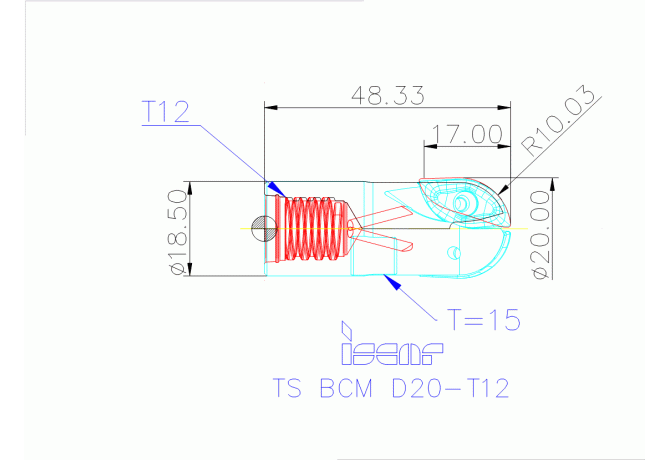

TS BCM D20-T12

Артикул: 3105925

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

17 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

20 mm

DIN

SAI01000395

FamilyProducts

Ball Nose Milling Heads with TS Threaded Adaptation Carrying Tangent Straight Edge Inserts for Semi-Finish Profiling

HAND Cutting direction

R - Right

ID Technical product number

3105925

Interface codes

J6 / J61

ISO

SAI03C0100$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

BCR D200..

LOC-02 ISO

IS$$38538564441619

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-38538564441619

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

18.5 mm

LOC-03 ISO

SAI03C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000395

Name Identifying order number

TS BCM D20-T12

THSZMS Connection thread nominal size machine side

T12

Working process

No working processes available

WT Weight of item

0.06 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
