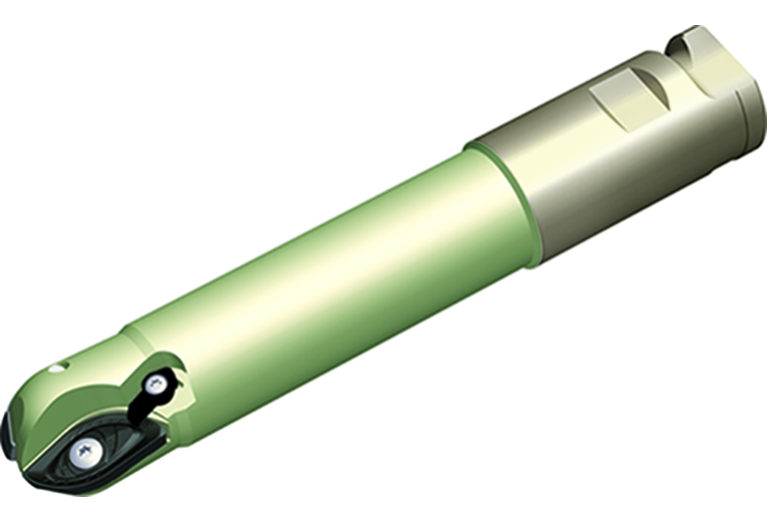

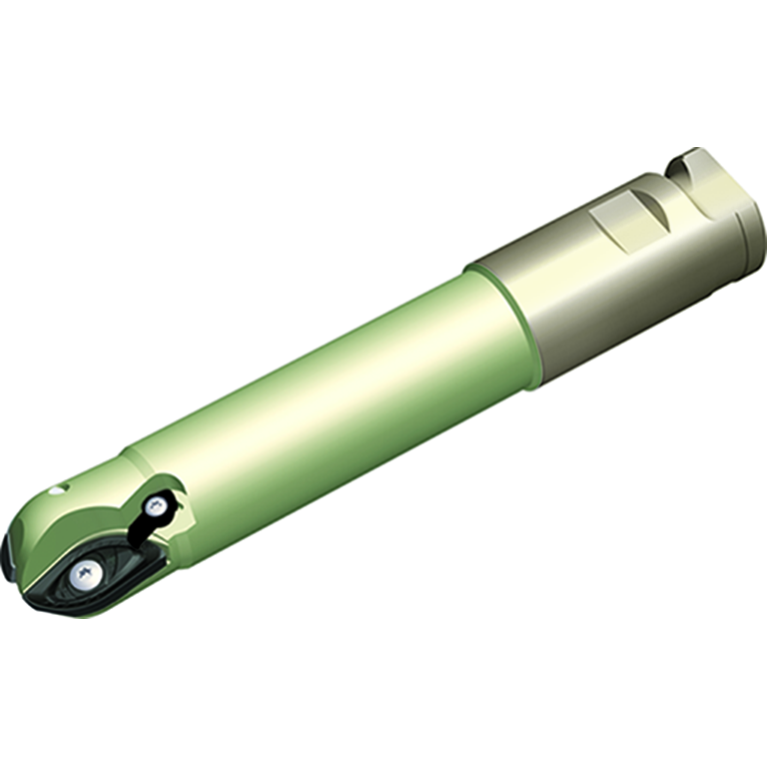

BMR03-050-XPX-XL

Артикул: BMR03-050-XPX-XL

В наличии

В корзину

Описание

Характеристики

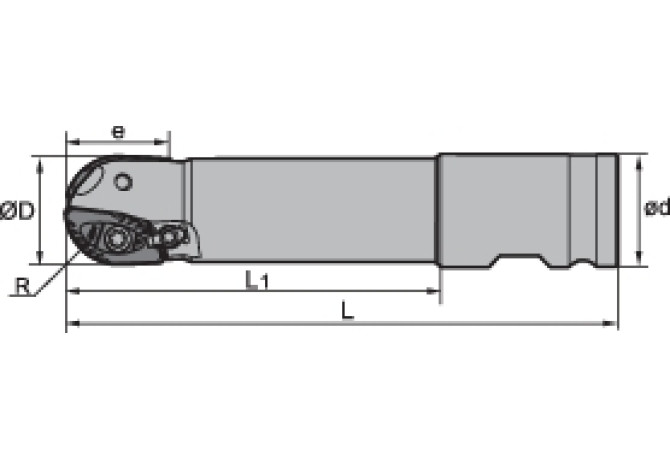

A2A Clearance angle major Pos. A

9 Degree

APMX Depth of cut maximum

50 mm

B1A Cutting edge length Pos. A

50 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

7.94 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

ZYL20001025

FamilyProducts

Profile mill

HAND Cutting direction

R - Right

ID Identifying order number

BMR03-050-XPX-XL

Interface codes

J6 /

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

2000

LOC-03 DCONMS Diameter

50.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL20001025

LS Shank length

80 mm

OAL Overall length

350 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

4.4 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
