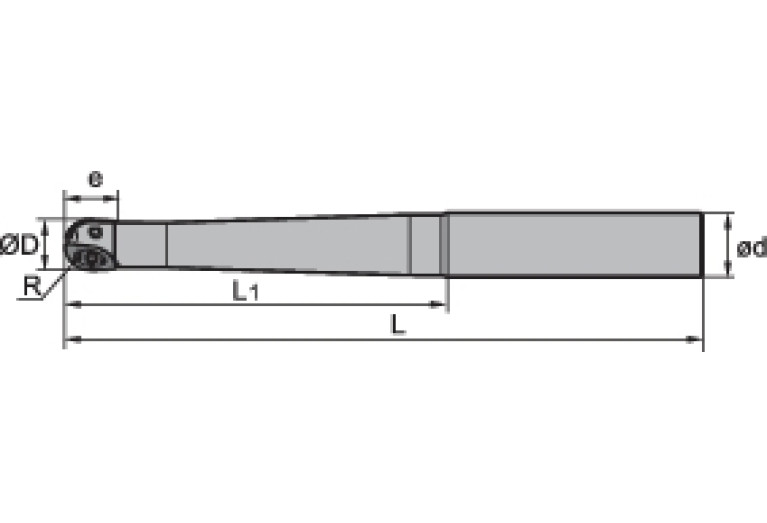

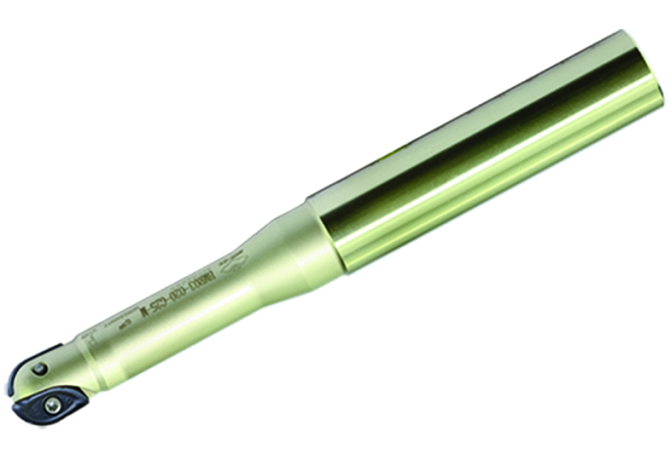

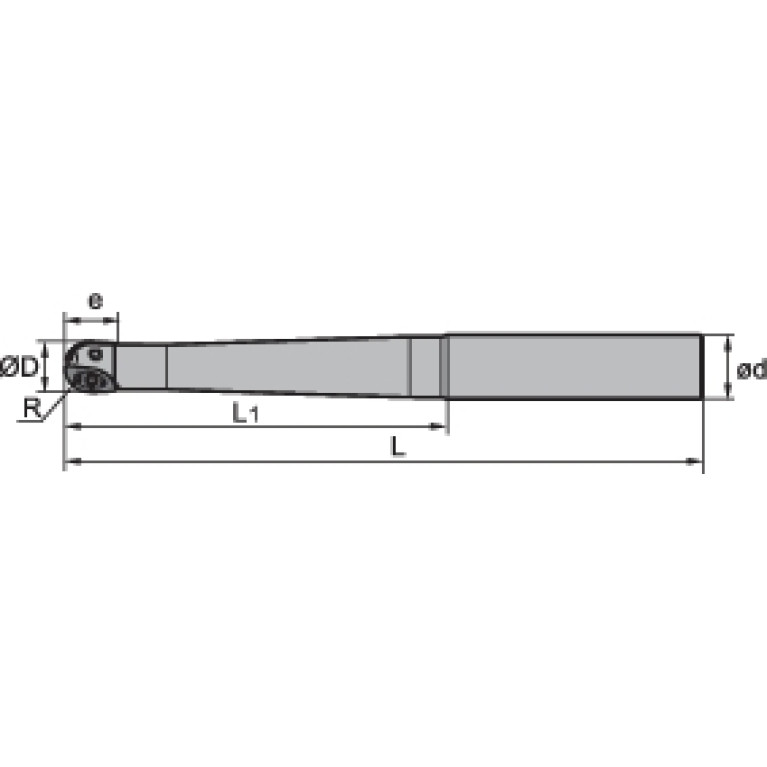

Главная Каталог продукции Toolunited 17 307-12 - Angular ball-nosed end mill BMR03-016-G20-M

BMR03-016-G20-M

Артикул: BMR03-016-G20-M

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

9 Degree

APMX Depth of cut maximum

16 mm

B1A Cutting edge length Pos. A

16 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.18 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3.5582 kg

DIN

ZYL02000105

FamilyProducts

Profile mill

HAND Cutting direction

R - Right

ID Identifying order number

BMR03-016-G20-M

Interface codes

J6 /

ISYC Subclass

307-12 - Angular ball-nosed end mill

LF Functional length

180 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LS Shank length

100 mm

OAL Overall length

180 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

0.4 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
