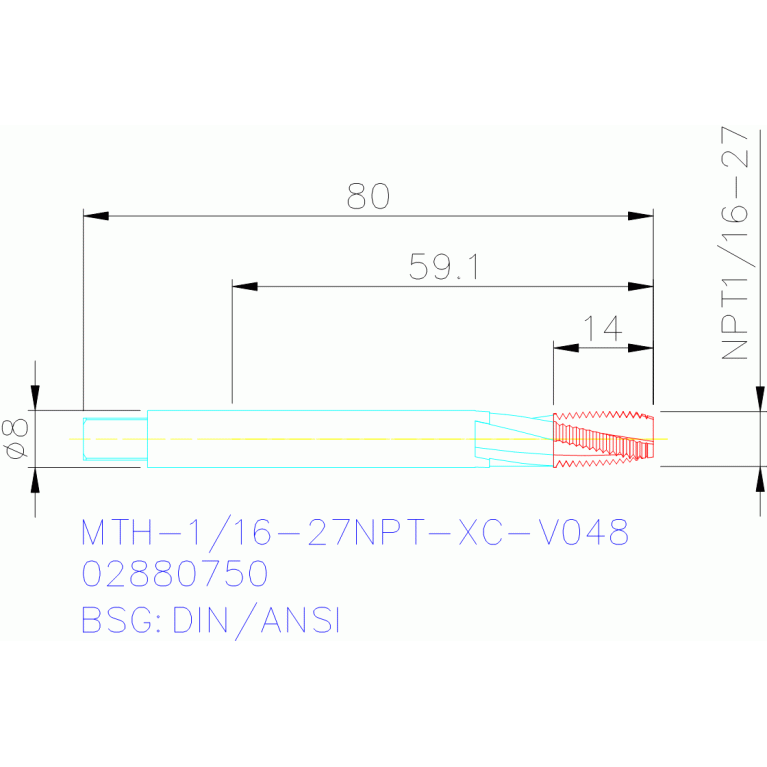

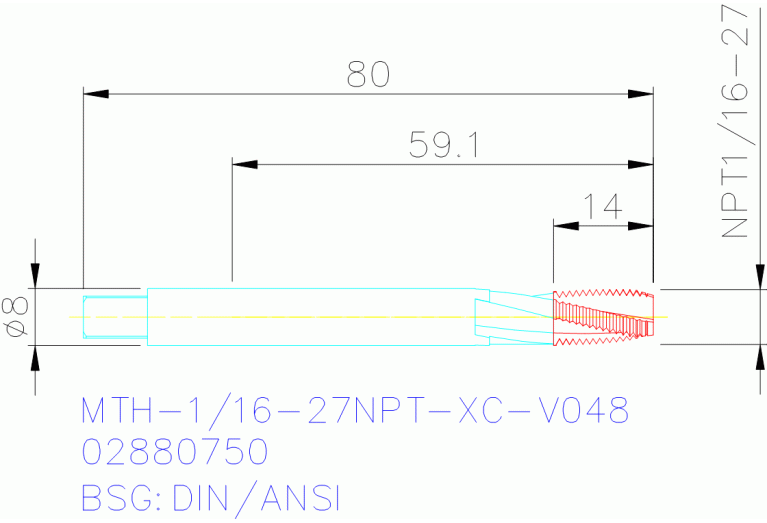

MTH-1/16-27NPT-XC-V048

Артикул: 02880750

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Vaporised

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00792105

FamilyProducts

MTH-1/16-27NPT-XC-V048

FHA Flute helix angle

15 Degree

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

02880750

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LDRED Neck length

56 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0079

LOC-03 DCONMS Diameter

7.95 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00792105

Name Identifying order number

MTH-1/16-27NPT-XC-V048

NOF Flute count

OAL Overall length

80 mm

PLCD Gate diameter

6.15 mm

PLG Plug style

C - Kappa r 15°

TDFR Thread diameter nominal fraction

1/16 in

TG Taper ratio

1:16

THFT Thread form type

NPT

THL Thread cutting part length

14 mm

TPI Threads per inch

27 1/in

Working process

BG - Tapping

WT Weight of item

0.026 kg
