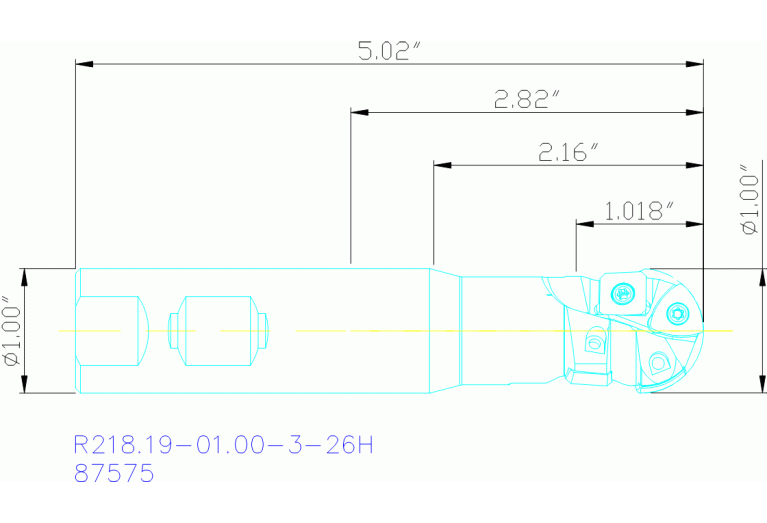

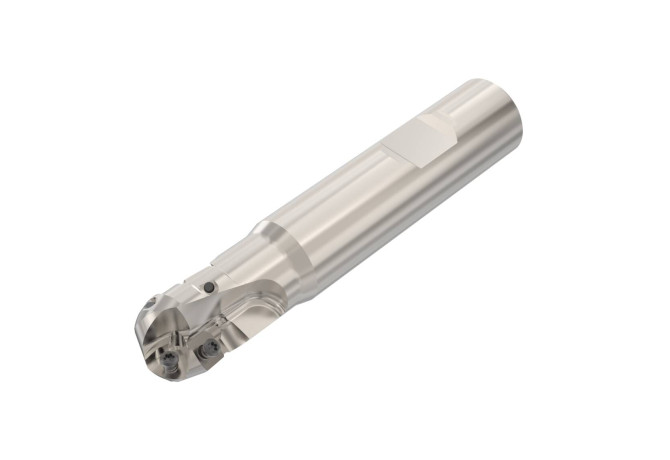

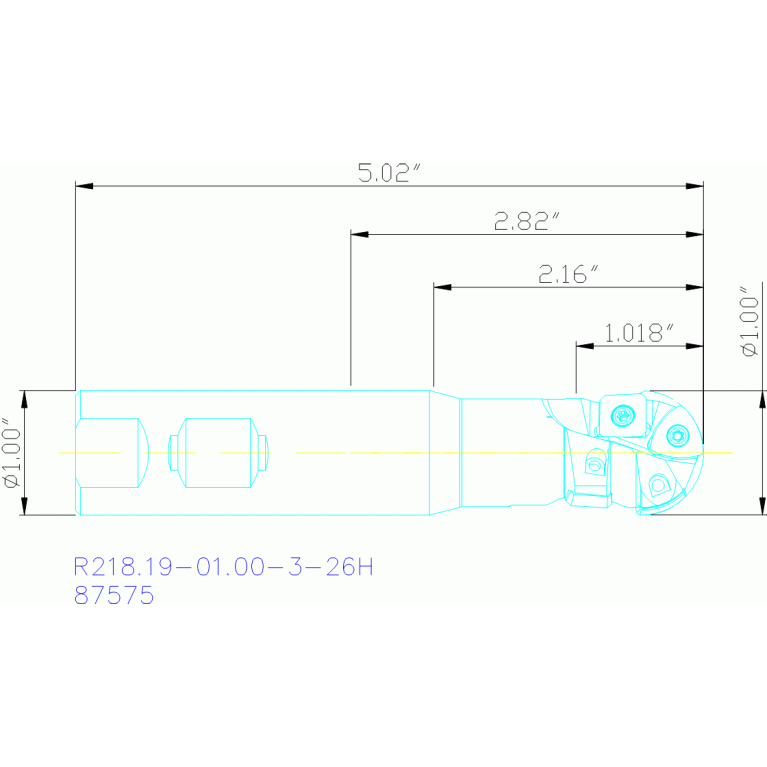

Главная Каталог продукции Toolunited 17 307-11 - Straight ball-nosed end mill R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

R218.19-01.00-3-26H

Seco

Артикул: 00087575

В наличии

В корзину

Описание

Характеристики

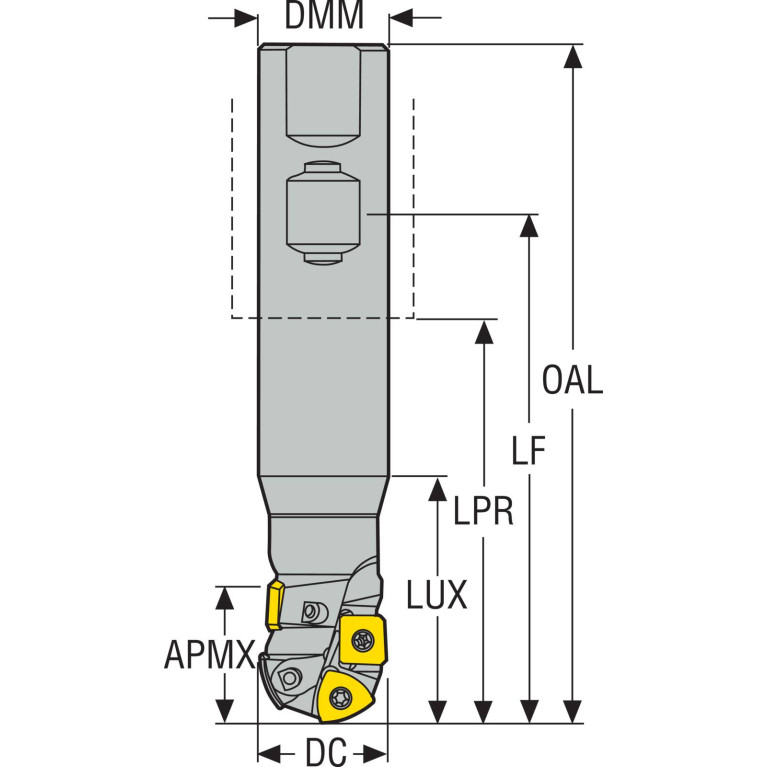

APMX Depth of cut maximum

27 mm

BI Block index

1

CCONMS Connection count machine side

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

25.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL10001035

FamilyProducts

R218.19-01.00-3-26H

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

-2 Degree

HAND Cutting direction

R - Right

ID Technical product number

00087575

Interface codes

J6 /

ISYC Subclass

307-11 - Straight ball-nosed end mill

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

1

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SO-218 19125T

LOC-02 BI Block index

2

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-218 19125T

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR Protruding length

72 mm

LS Shank length

72 mm

LU Usable length

55.2 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

R218.19-01.00-3-26H

OAL Overall length

127.8 mm

RPMX Rotational speed maximum

21700 1/min

Working process

No working processes available

WT Weight of item

0.43 kg

ZEFP Peripheral effective cutting edge count

1
