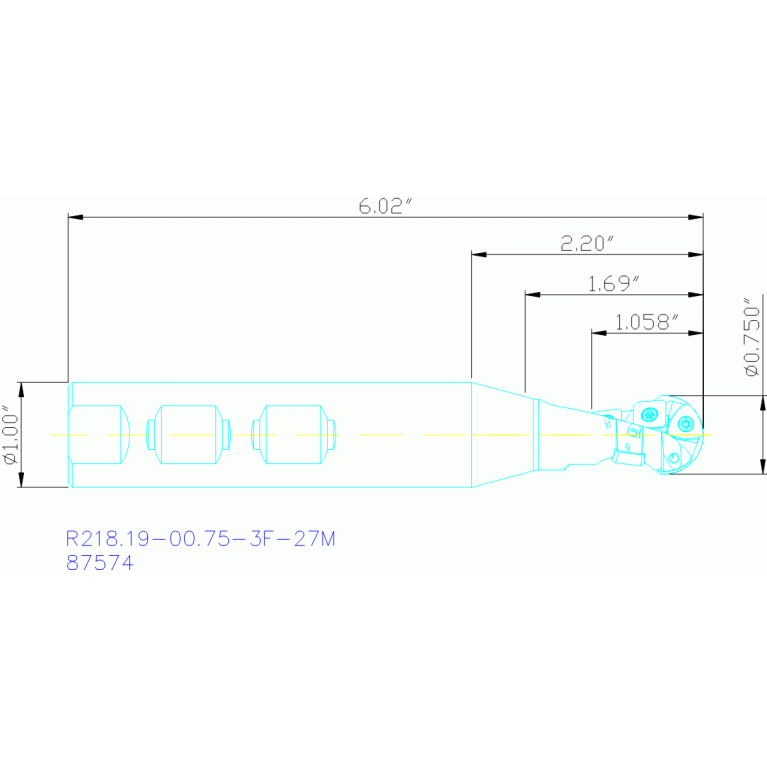

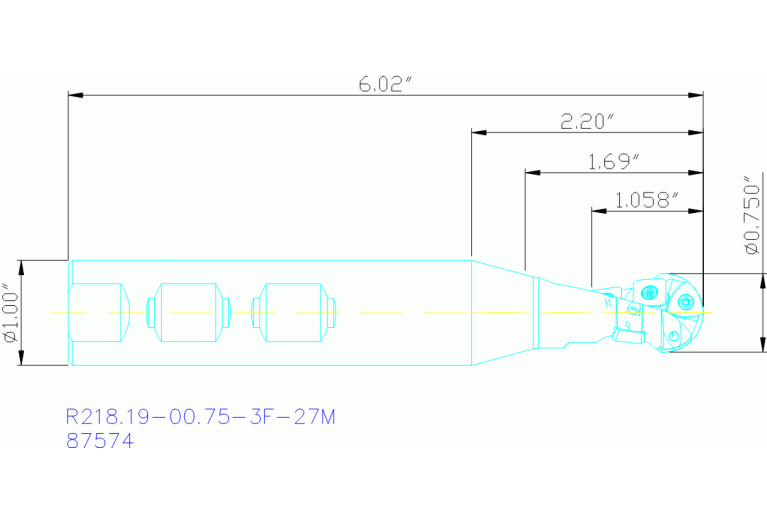

Главная Каталог продукции Toolunited 17 307-11 - Straight ball-nosed end mill R218.19-00.75-3F-27M

R218.19-00.75-3F-27M

R218.19-00.75-3F-27M R218.19-00.75-3F-27M R218.19-00.75-3F-27M R218.19-00.75-3F-27M

R218.19-00.75-3F-27M

Seco
Артикул: 00087574
В наличии
В корзину
Описание
Характеристики
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
12 Degree
A2B Clearance angle major Pos. B
11 Degree

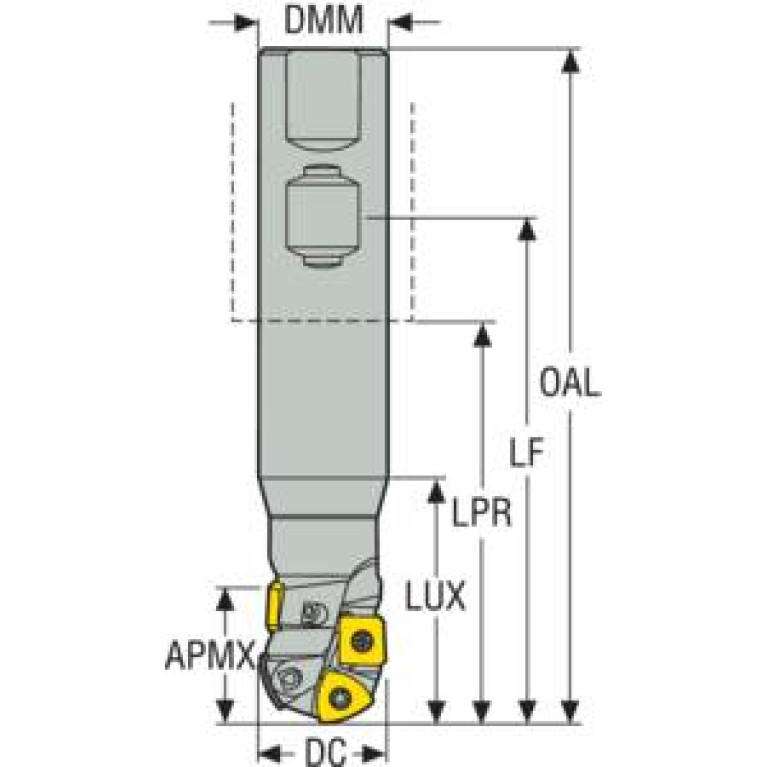

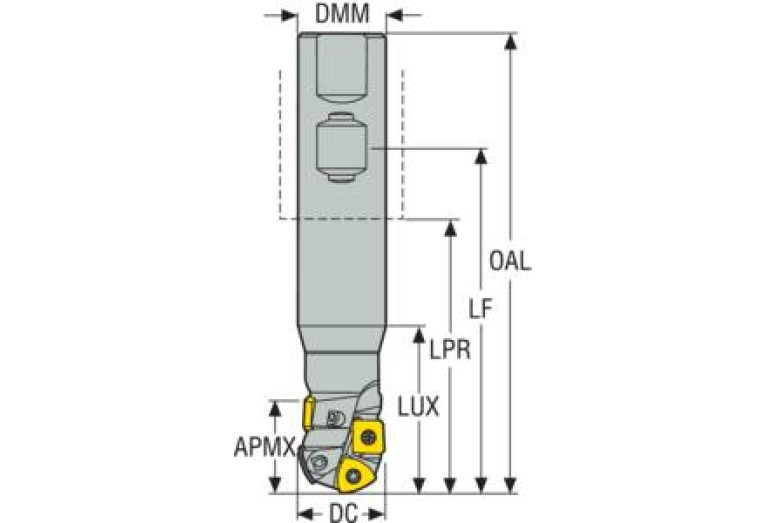

APMX Depth of cut maximum
26.7 mm
B1B Cutting edge length Pos. B
7.94 mm
B3A Inscribed circle diameter Pos. A
7.06 mm
B3B Inscribed circle diameter Pos. B
7.94 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
2.78 mm
C1B Insert thickness Pos. B
3.18 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL10001025
FamilyProducts
R218.19-00.75-3F-27M
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
00087574
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
1
ISO
ZYL10R7500h$06
ISYC Subclass
307-11 - Straight ball-nosed end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SPMX070304-75
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SPMX0703
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
ZYL10R7500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001025
LPR Protruding length
97 mm
LS Shank length
97.3 mm
LU Usable length
43.5 mm
Name Identifying order number
R218.19-00.75-3F-27M
NameAnsi Identifying order number inch alternative
R218.19-00.750-3F-27M
OAL Overall length
153.2 mm
RPMX Rotational speed maximum
26200 1/min
Working process
No working processes available
WT Weight of item
0.5 kg
ZEFP Peripheral effective cutting edge count
1
