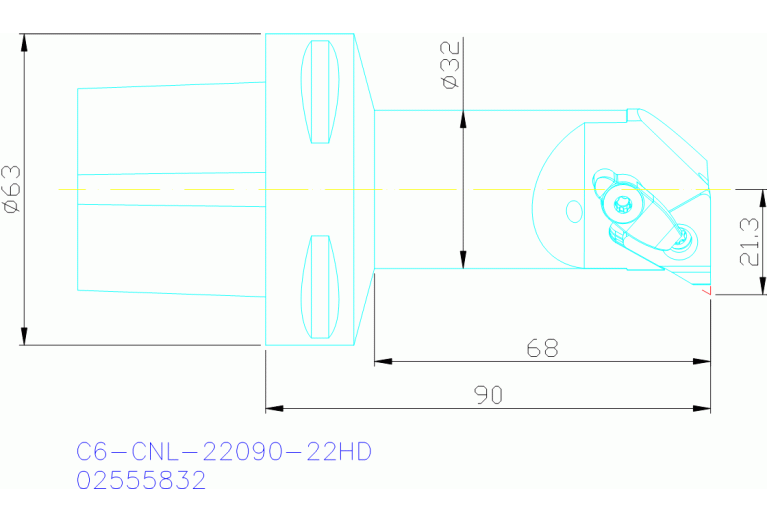

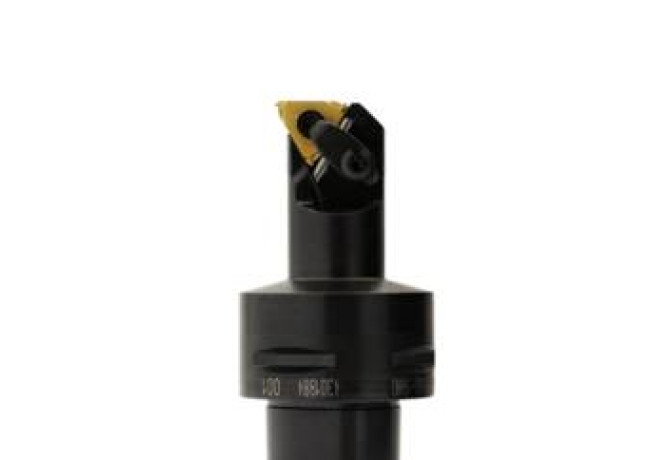

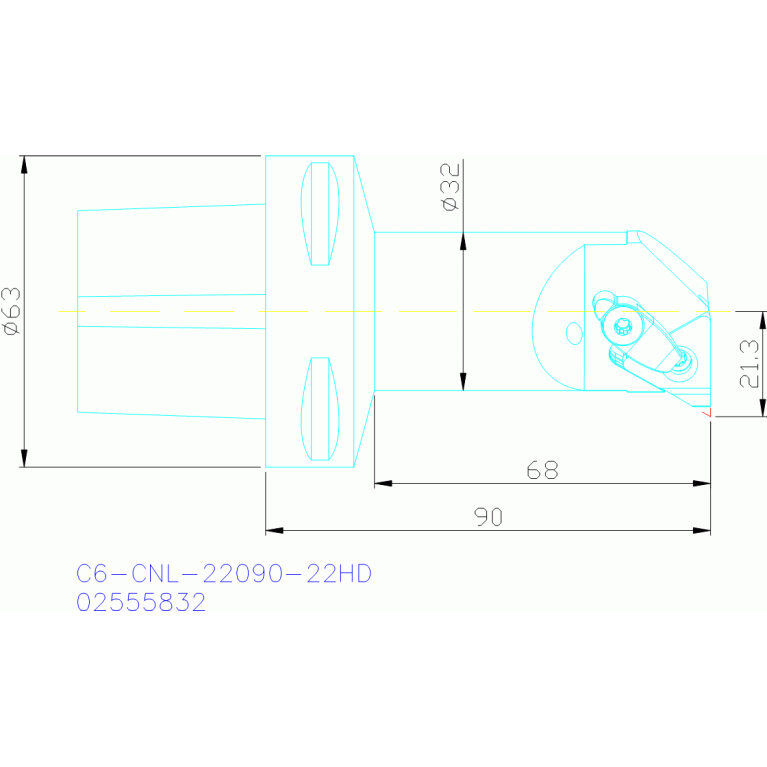

Главная Каталог продукции Toolunited 17 309-10 - System tool for internal threading C6-CNL-22090-22HD

C6-CNL-22090-22HD

C6-CNL-22090-22HD C6-CNL-22090-22HD C6-CNL-22090-22HD C6-CNL-22090-22HD

C6-CNL-22090-22HD

Seco
Артикул: 02555832
В наличии
В корзину
Описание
Характеристики
A1A SKJ Cutting edge angle major Pos. A
6
A61A SKJ Thread pitch minimum
1.5 mm
BDRED Body diameter reduced
32 mm
BLDA SKJ Tool style code Position A
6
C8A SKJ Spitzenradius Schneidkörper Pos.A
0.22 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300195
DIN CSW1
SO-SO 22ER
DMIN Minimum bore diameter
38 mm
FamilyProducts
C6-CNL-22090-22HD
G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A
12.7 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
4.71 mm
HAND Cutting direction
L - Left
ID Technical product number
02555832
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0630$$$$
ISO CSW1
SO$$NL22L
ISYC Subclass
309-10 - System tool for internal threading
KAPR Tool cutting edge angle
90 Degree
LF Functional length
90 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
90 mm
LTA Length tool assembly
90 mm
MIID Master insert identification
ISO SO$$NL22L
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
C6-CNL-22090-22HD
WF Functional width
21.3 mm
Working process
No working processes available
WT Weight of item
1.036 kg
