Главная Каталог продукции Toolunited 17 307-04 - T-slot end mill TRIB 40-25W-4Z

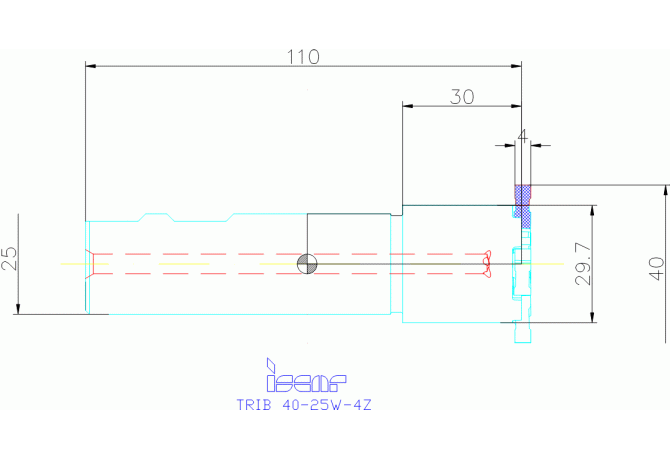

TRIB 40-25W-4Z

Артикул: 2301774

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4 mm

BD Body diameter

29.7 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02501015

FamilyProducts

Grooving Shell Mills Carrying Triple-Edged Precision Ground Inserts

HAND Cutting direction

R - Right

ID Technical product number

2301774

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

ISYC Subclass

307-04 - T-slot end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

TRI 16RK-4.0-0.2

LOC-02 ISO

IS$$63582987012895

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-63582987012895

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR Protruding length

56.4 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

TRIB 40-25W-4Z

OAL Overall length

112.43 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.44 kg

ZEFP Peripheral effective cutting edge count
