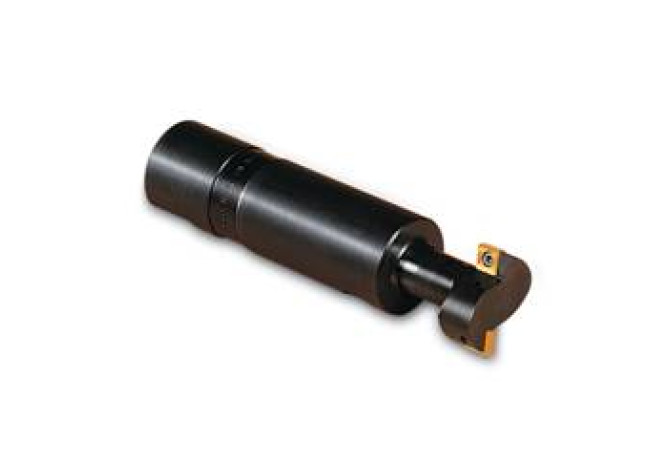

Главная Каталог продукции Toolunited 17 307-04 - T-slot end mill R395.19-3225.3-11A

R395.19-3225.3-11A

R395.19-3225.3-11A R395.19-3225.3-11A R395.19-3225.3-11A R395.19-3225.3-11A

R395.19-3225.3-11A

Seco
Артикул: 75503485
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree

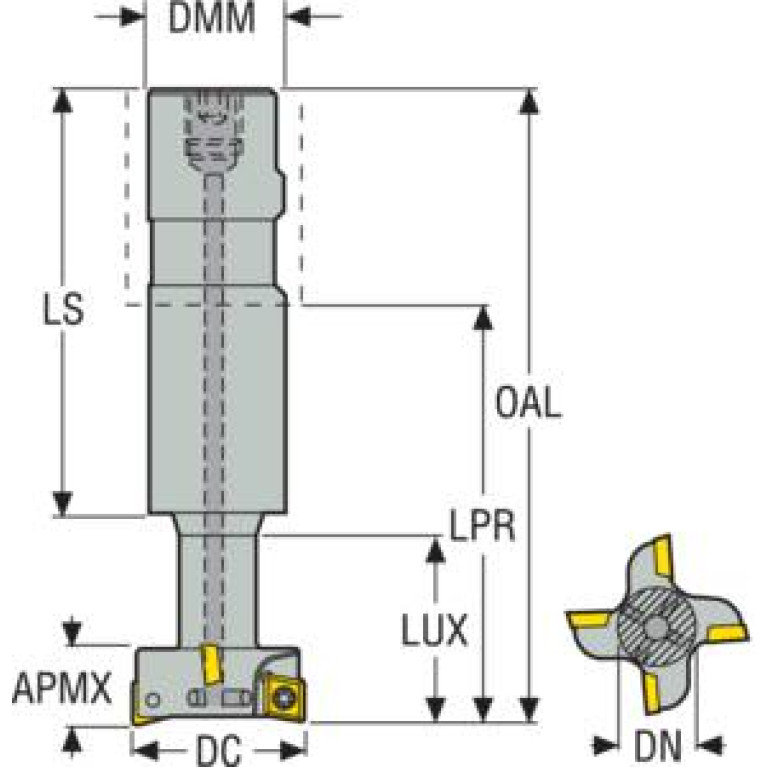

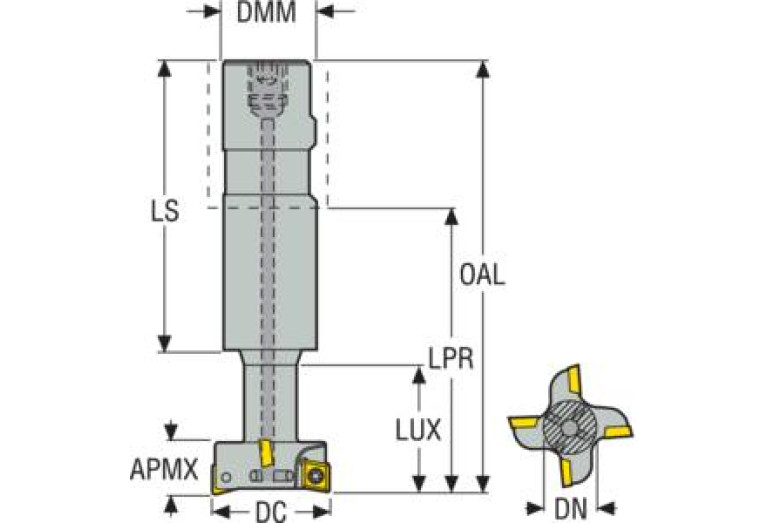

APMX Depth of cut maximum
11 mm
B1A Cutting edge length Pos. A
6.35 mm
B1B Cutting edge length Pos. B
6.35 mm
B3A Inscribed circle diameter Pos. A
6.35 mm
B3B Inscribed circle diameter Pos. B
6.35 mm
BD Body diameter
12 mm
BI Block index
1
BLDA Tool style code Position A
3
BLDB Tool style code Position B
3
C1A Insert thickness Pos. A
3.5 mm
C1B Insert thickness Pos. B
3.5 mm
CCONMS Connection count machine side
2
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL03201005
FamilyProducts
R395.19-3225.3-11A
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
2 Degree
HAND Cutting direction
R - Right
ID Technical product number
75503485
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISO
ZYL10G3200h$06
ISYC Subclass
307-04 - T-slot end mill
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
CCMX060304-E06
LOC-01 ISO
SO$$CC0603**3RB****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SO-CC-0603
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
CCMX060304-E06
LOC-02 ISO
SO$$CC0603**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-CC-0603
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
ZYL10G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201005
LPR Protruding length
70 mm
LS Shank length
101 mm
LU Usable length
24 mm
MIID Master insert identification
CCMX060304-E06
Name Identifying order number
R395.19-3225.3-11A

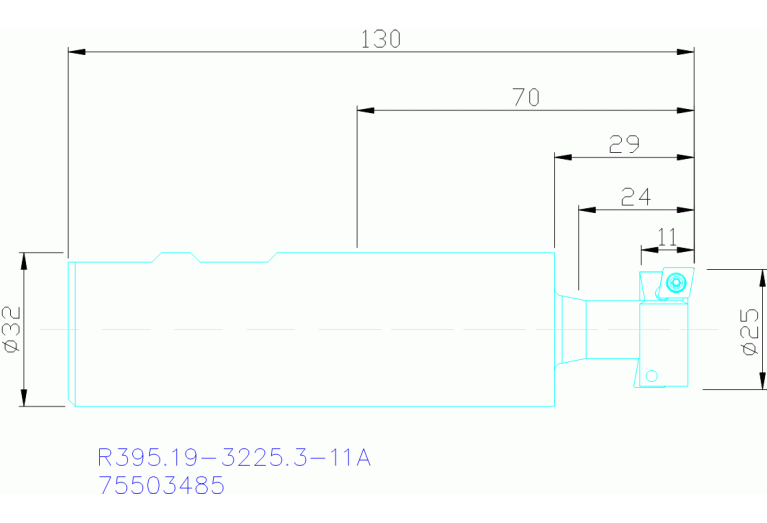

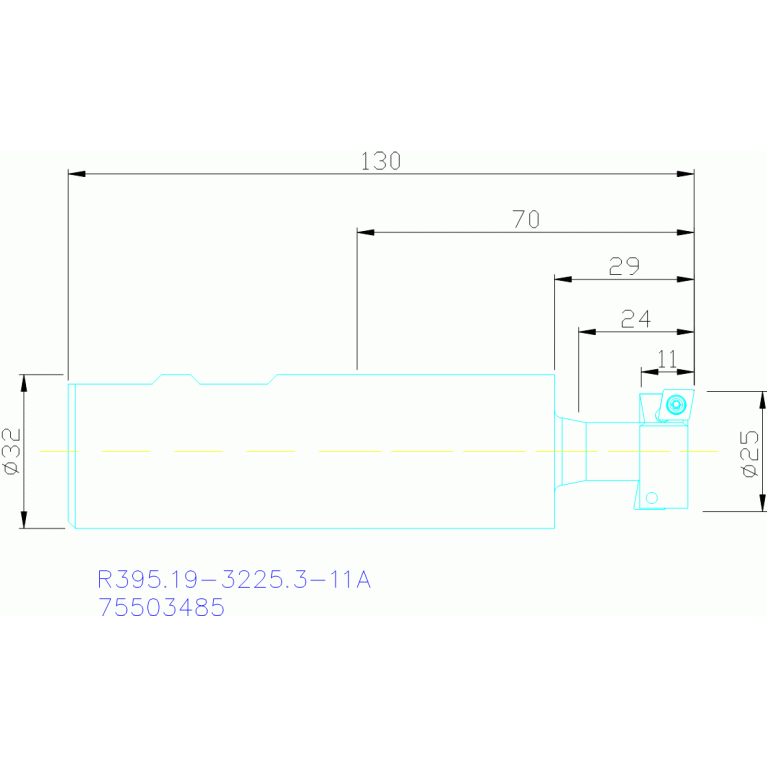

OAL Overall length
130 mm
RPMX Rotational speed maximum
28400 1/min
Working process
No working processes available
WT Weight of item
0.7 kg
ZEFP Peripheral effective cutting edge count
1
