Главная Каталог продукции Toolunited 17 307-04 - T-slot end mill R395.19-01.84-57-3A

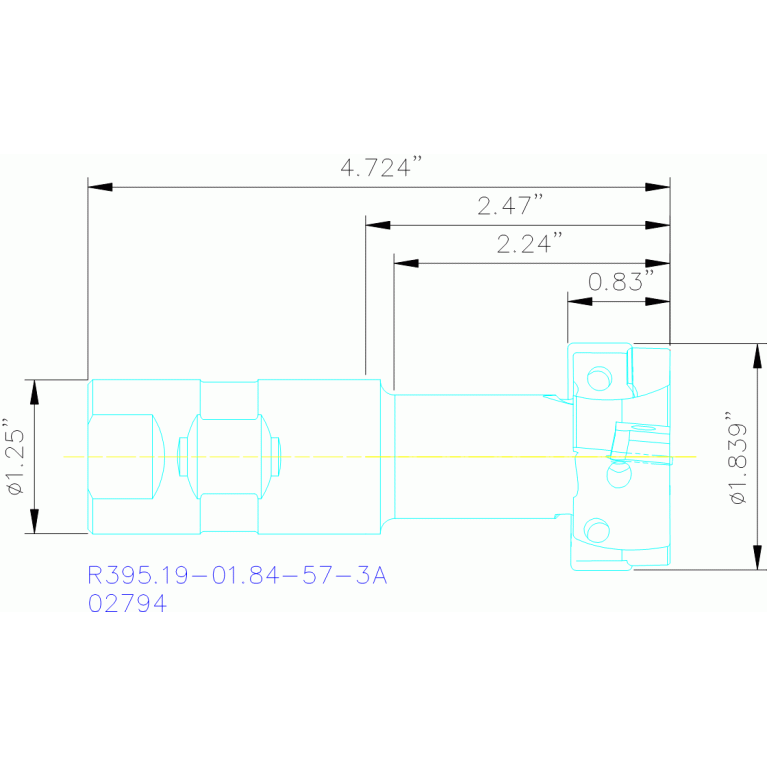

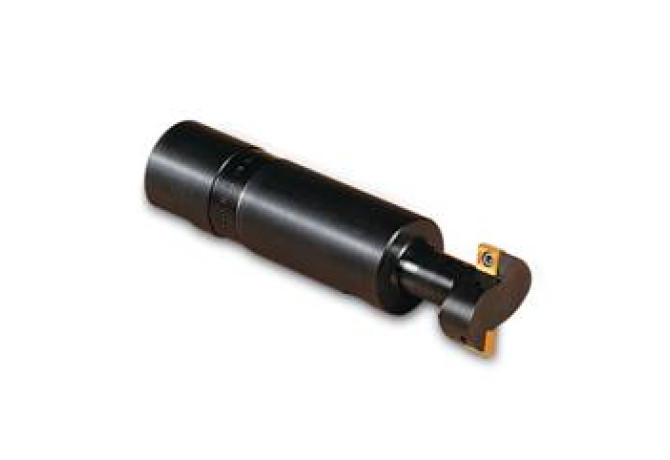

R395.19-01.84-57-3A

R395.19-01.84-57-3A R395.19-01.84-57-3A R395.19-01.84-57-3A R395.19-01.84-57-3A

R395.19-01.84-57-3A

Seco
Артикул: 00070693
В наличии
В корзину
Описание
Характеристики

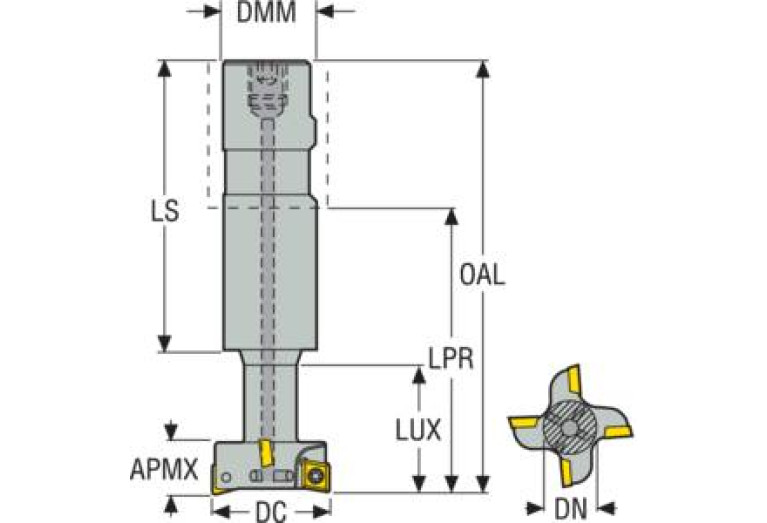

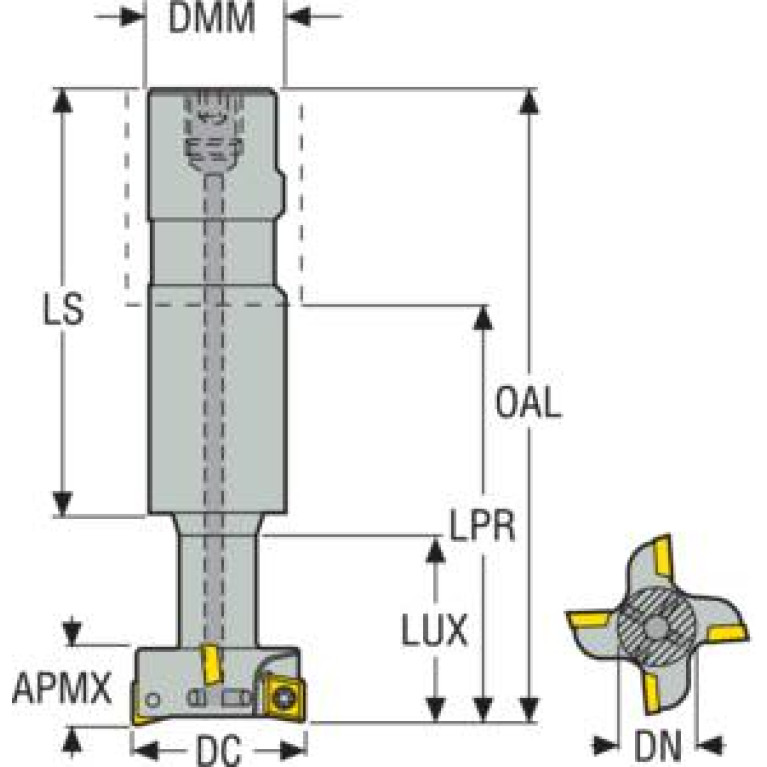

A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
APMX Depth of cut maximum
21 mm
B1A Cutting edge length Pos. A
12.7 mm
B1B Cutting edge length Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BD Body diameter
25.4 mm
BI Block index
1
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
2
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
1.2 mm
D1B Corner radius Pos. B
1.2 mm
DC Cutting diameter
46.81 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL12501025
FamilyProducts
R395.19-01.84-57-3A
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
2 Degree
HAND Cutting direction
R - Right
ID Technical product number
00070693
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISO
ZYL10S1250h$06
ISYC Subclass
307-04 - T-slot end mill
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SCET120612T-M11
LOC-01 ISO
SO$$SC1206**3RB****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SC3-1206
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCET120612T-M11
LOC-02 ISO
SO$$SC1206**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SC3-1206
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501025
LPR Protruding length
60 mm
LS Shank length
63 mm
LU Usable length
57 mm
MIID Master insert identification
SCET120612T-M11
Name Identifying order number
R395.19-01.84-57-3A
OAL Overall length
120 mm
RPMX Rotational speed maximum
9800 1/min
Working process
No working processes available
WT Weight of item
0.8 kg
ZEFP Peripheral effective cutting edge count
2
