Главная Каталог продукции Toolunited 17 308-09 - Saw blade / slitting cutter SGSF 200-6-1.500K

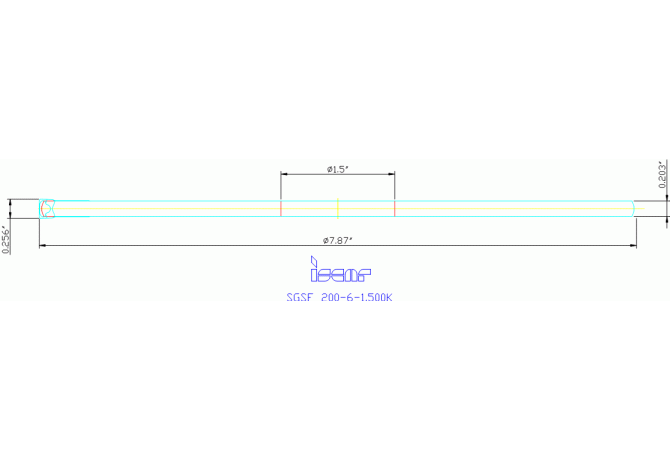

SGSF 200-6-1.500K

SGSF 200-6-1.500K SGSF 200-6-1.500K

SGSF 200-6-1.500K

Iscar
Артикул: 2301022
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CICT Cutting item count
14
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
5.588 mm
CWX Cutting width maximum
6.604 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
199.898 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
80.01 mm
DIN
FDA15000120
FamilyProducts
Slitting Cutters Carrying Self-Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
2301022
Interface codes
J6 /
ISYC Subclass
308-09 - Saw blade / slitting cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15000120
Name Identifying order number
SGSF 200-6-1.500K
RPMX Rotational speed maximum
400 1/min
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
54.864 kg
ZEFP Peripheral effective cutting edge count
14
