Главная Каталог продукции Toolunited 17 308-09 - Saw blade / slitting cutter R335.10-063-02.22-5

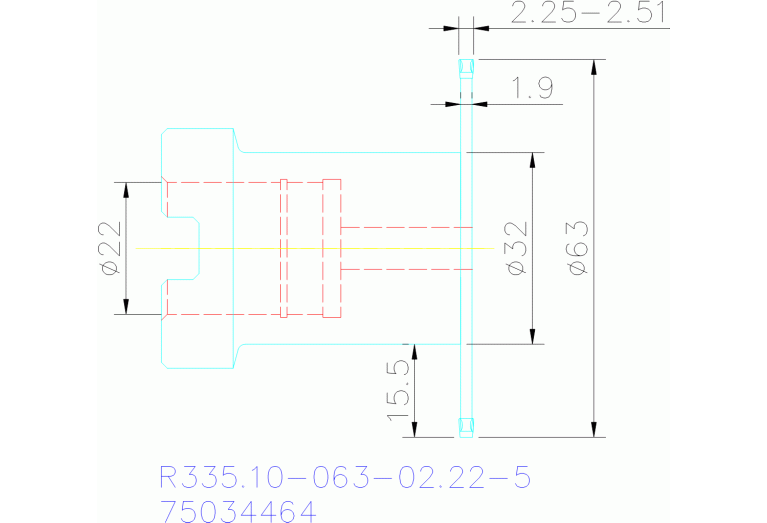

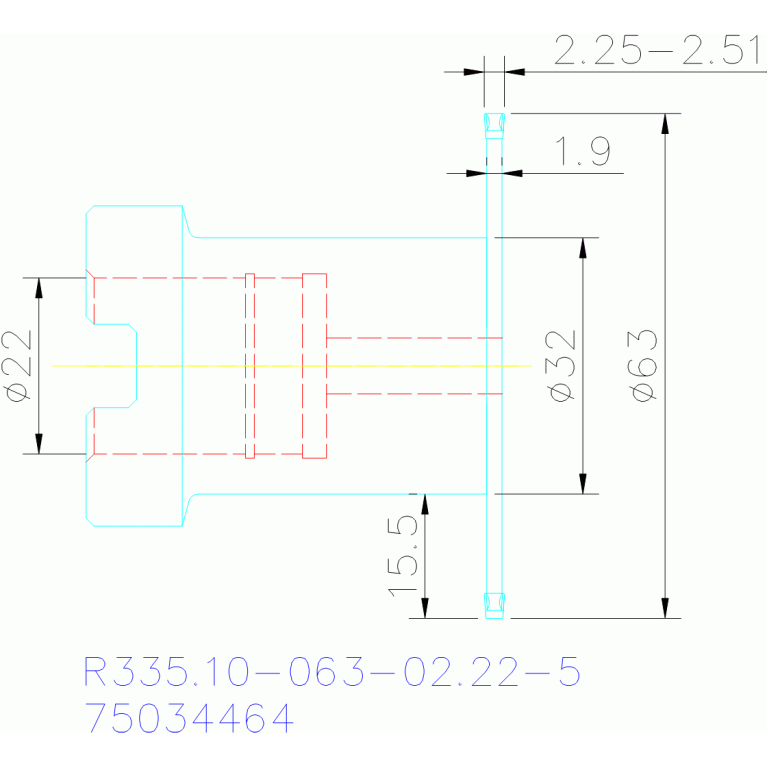

R335.10-063-02.22-5

R335.10-063-02.22-5 R335.10-063-02.22-5 R335.10-063-02.22-5 R335.10-063-02.22-5

R335.10-063-02.22-5

Seco
Артикул: 75034464
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
2.25 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
32 mm
DIN
FDA02202200
FamilyProducts
R335.10-063-02.22-5
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
75034464
Interface codes
J6 /
ISYC Subclass
308-09 - Saw blade / slitting cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200
Name Identifying order number
R335.10-063-02.22-5
OAL Overall length
1.9 mm
RPMX Rotational speed maximum
4000 1/min
Working process
No working processes available
WT Weight of item
0.441 kg
ZEFP Peripheral effective cutting edge count
5
