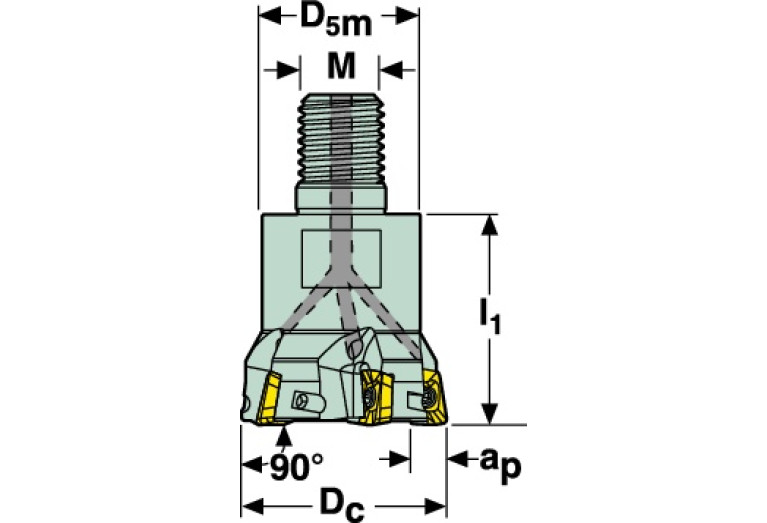

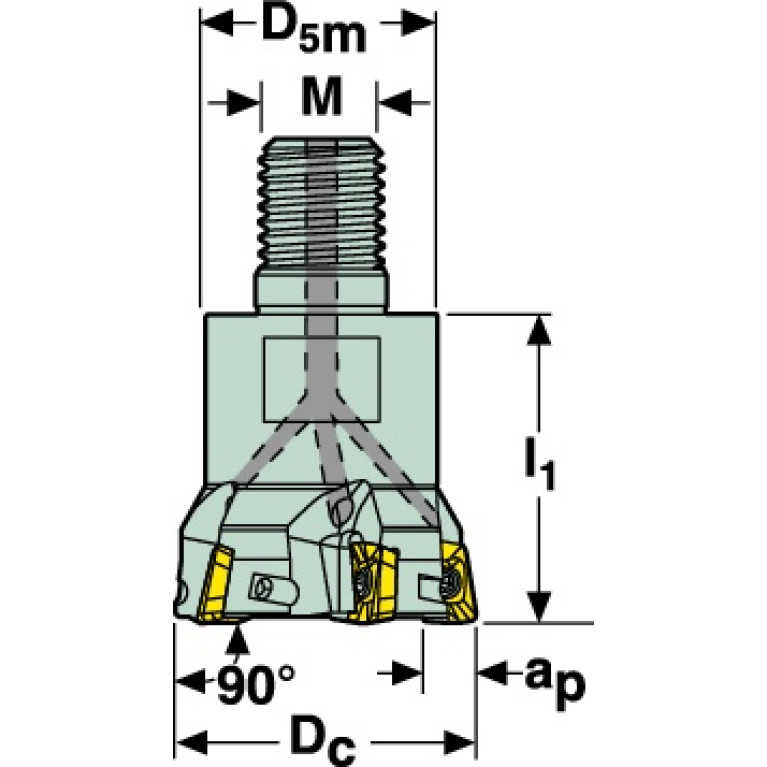

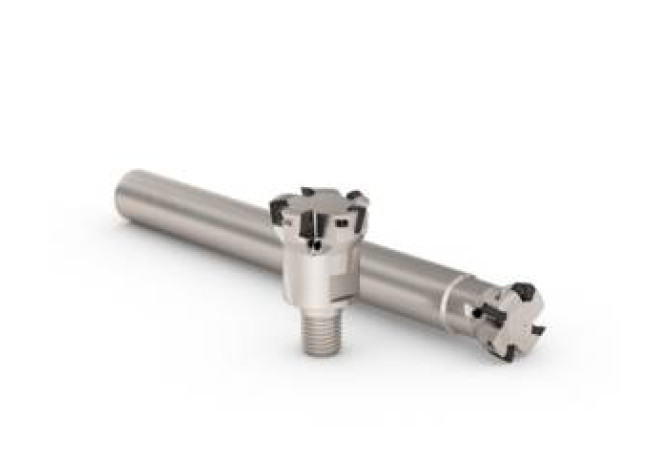

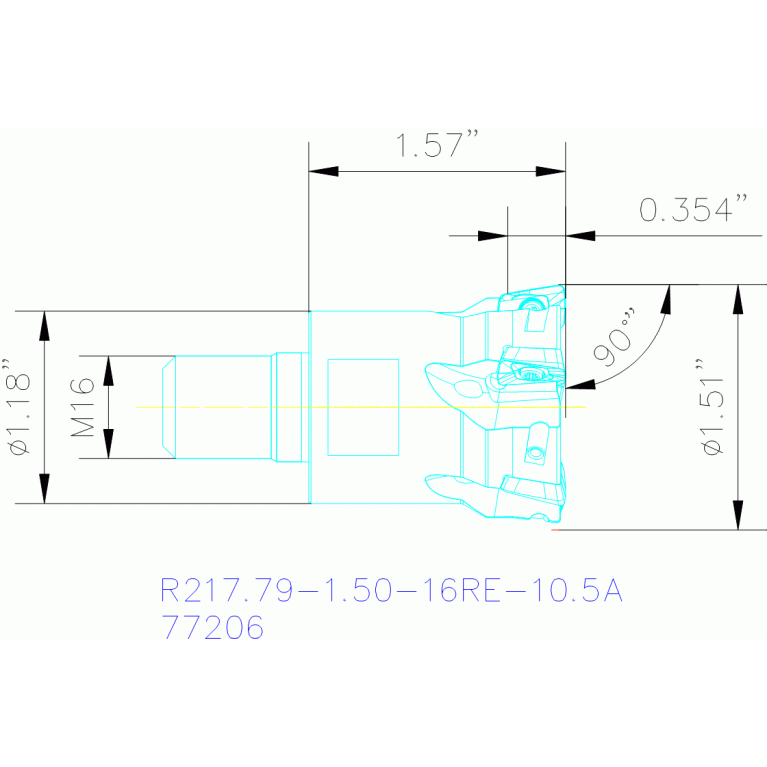

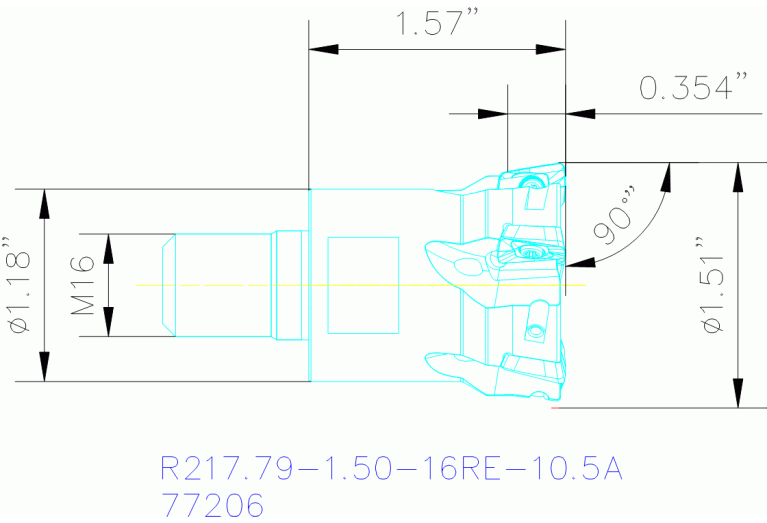

Главная Каталог продукции Toolunited 17 307-10 - Spot facing end mill R217.79-1.50-16RE-10.5A

R217.79-1.50-16RE-10.5A

R217.79-1.50-16RE-10.5A R217.79-1.50-16RE-10.5A R217.79-1.50-16RE-10.5A R217.79-1.50-16RE-10.5A

R217.79-1.50-16RE-10.5A

Seco
Артикул: 02844111
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
6 mm
B1A Cutting edge length Pos. A
9.7 mm
BI Block index
1
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
3.8 mm
CCONMS Connection count machine side
3
CICT Cutting item count
5
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.2 mm
D6A Wiper edge length Pos. A
1.3 mm
DC Cutting diameter
38.3168 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SAD01600105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R217.79-1.50-16RE-10.5A
GAMF Rake angle radial
-7 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02844111
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SCM01G3000$$$$
ISYC Subclass
307-10 - Spot facing end mill
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
XOEX10T302R-M06
LOC-01 ISO
SO$$XO10T3**3RB****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SO-XO 10T3 R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 ISO
SCM01G3000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600105
MIID Master insert identification
XOEX10T302R-M06
Name Identifying order number
R217.79-1.50-16RE-10.5A
NameAnsi Identifying order number inch alternative
R217.79-01.50-16RE-XO10-5A
RPMX Rotational speed maximum
15000 1/min
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.3 kg
ZEFP Peripheral effective cutting edge count
5
