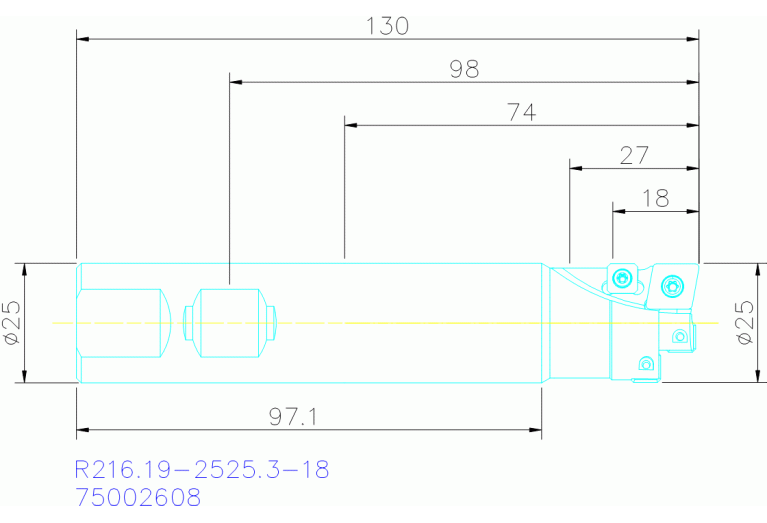

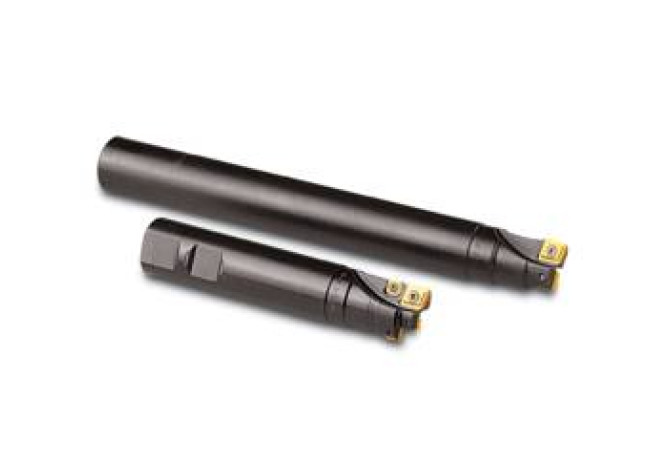

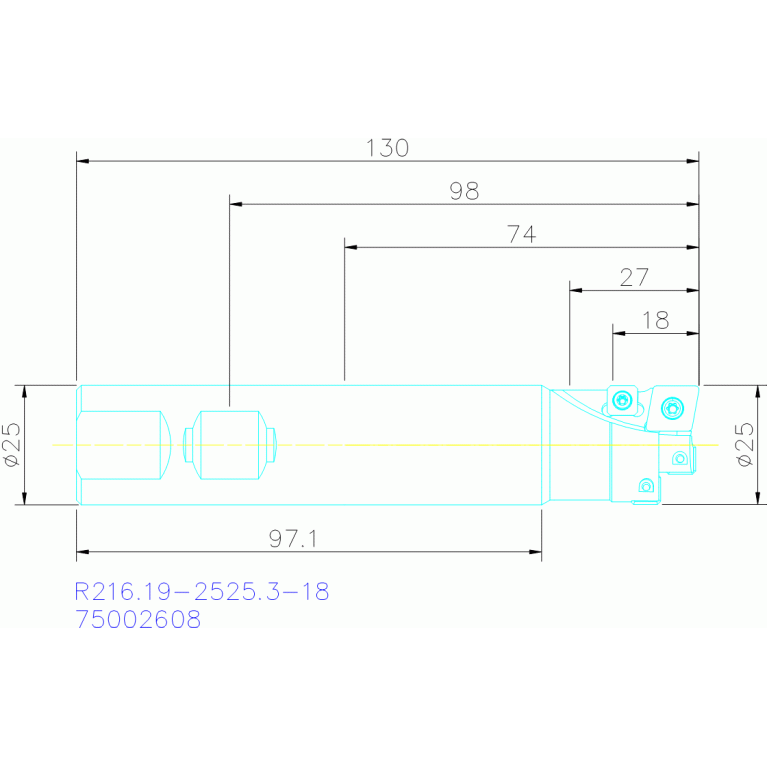

Главная Каталог продукции Toolunited 17 307-10 - Spot facing end mill R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

R216.19-2525.3-18

Seco

Артикул: 75002608

В наличии

В корзину

Описание

Характеристики

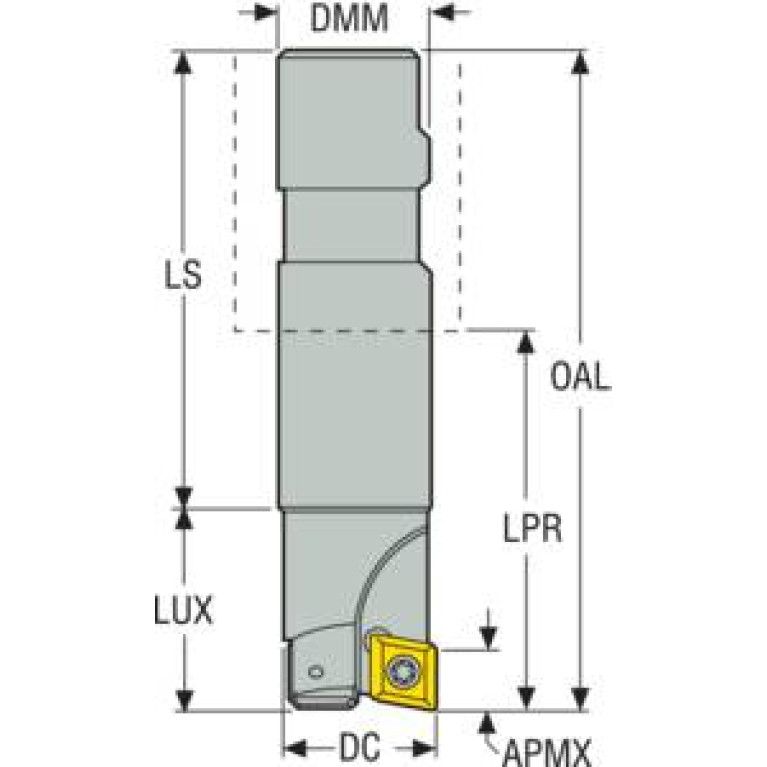

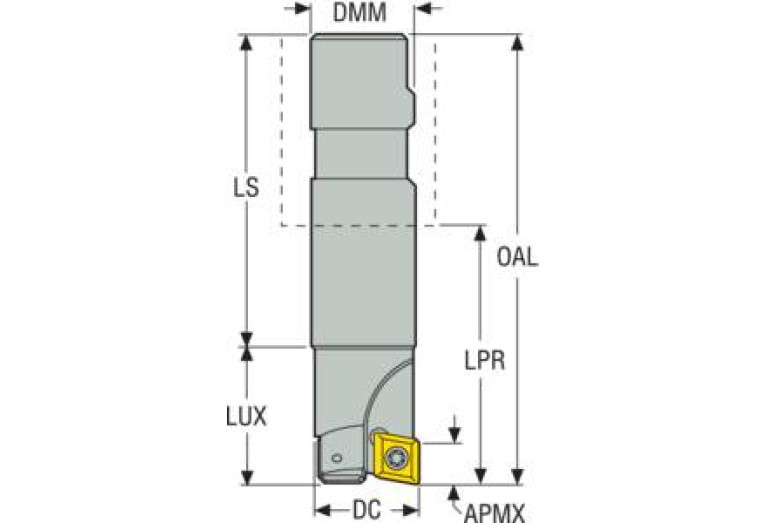

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

11 Degree

APMX Depth of cut maximum

18 mm

B1A Cutting edge length Pos. A

6.35 mm

B3A Inscribed circle diameter Pos. A

6.35 mm

BI Block index

1

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

2.38 mm

CCONMS Connection count machine side

2

CICT Cutting item count

4

COMPC Company code

SO - SECO Tools

D1A Corner radius Pos. A

0.4 mm

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02501005

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

4

FamilyProducts

R216.19-2525.3-18

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

2 Degree

HAND Cutting direction

R - Right

ID Technical product number

75002608

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

ZYL10G2500h$06

ISYC Subclass

307-10 - Spot facing end mill

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

SPMX060204-75

LOC-01 ISO

SO$$CC09T3**3RB****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SO-SPMX0602

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

LPR Protruding length

74 mm

LS Shank length

90 mm

LU Usable length

27 mm

MIID Master insert identification

SPMX060204-75

Name Identifying order number

R216.19-2525.3-18

NameAnsi Identifying order number inch alternative

R216.192525.318

OAL Overall length

130 mm

RPMX Rotational speed maximum

15000 1/min

Working process

No working processes available

WT Weight of item

0.5 kg

ZEFP Peripheral effective cutting edge count

1
