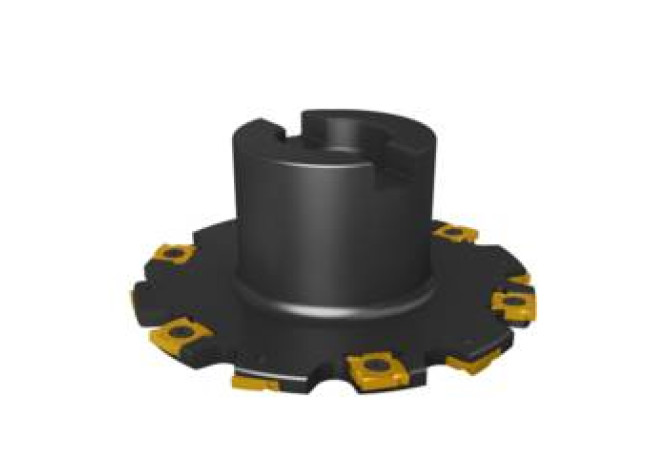

Главная Каталог продукции Toolunited 17 308-06 - Half-side slot milling cutter R335.19-125.10.32-6

R335.19-125.10.32-6

R335.19-125.10.32-6 R335.19-125.10.32-6 R335.19-125.10.32-6

R335.19-125.10.32-6

Seco
Артикул: 02565046
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
29.6 mm
CICT Cutting item count
6
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
10 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
58 mm
DIN
FDA03202200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
R335.19-125.10.32-6
GAMF Rake angle radial
-12 Degree
GAMP Rake angle axial
-3 Degree
HAND Cutting direction
R - Right
ID Technical product number
02565046
Interface codes
J6 /
ISYC Subclass
308-06 - Half-side slot milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
MILTTY Mill tool type ISO
E - Disc mill - one side cutting
Name Identifying order number
R335.19-125.10.32-6
OAL Overall length
50 mm
RPMX Rotational speed maximum
6000 1/min
Working process
No working processes available
WT Weight of item
1.218 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
