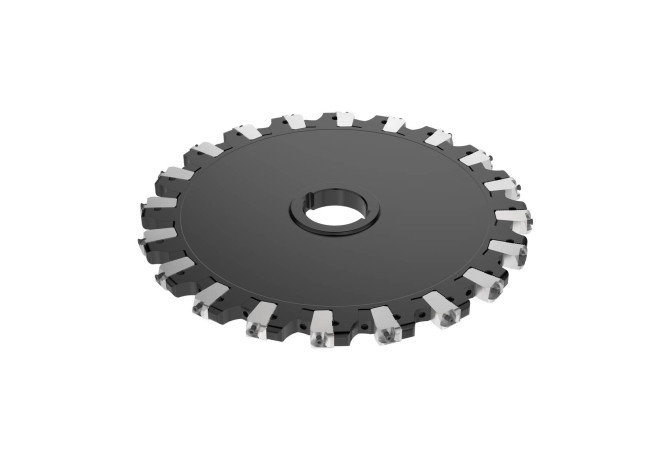

Главная Каталог продукции Toolunited 17 308-06 - Half-side slot milling cutter 335.25-315.1317XL.50-20L

335.25-315.1317XL.50-20L

335.25-315.1317XL.50-20L 335.25-315.1317XL.50-20L 335.25-315.1317XL.50-20L 335.25-315.1317XL.50-20L

335.25-315.1317XL.50-20L

Seco
Артикул: 02993814
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1

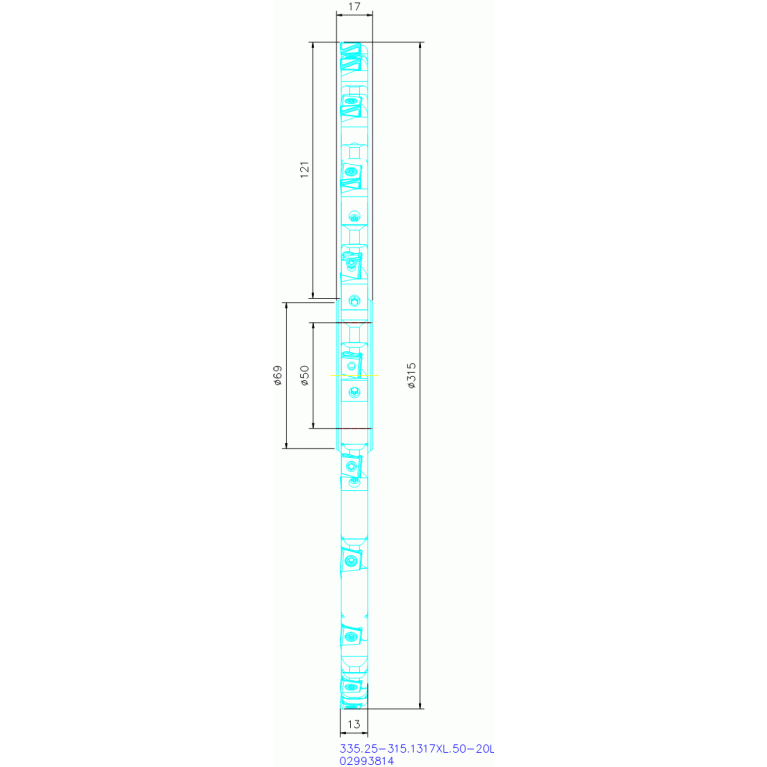

CDX Cutting depth maximum
121.036 mm
CICT Cutting item count
20
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
8.5 mm
CXSC Coolant exit style code
0 - Without coolant exit

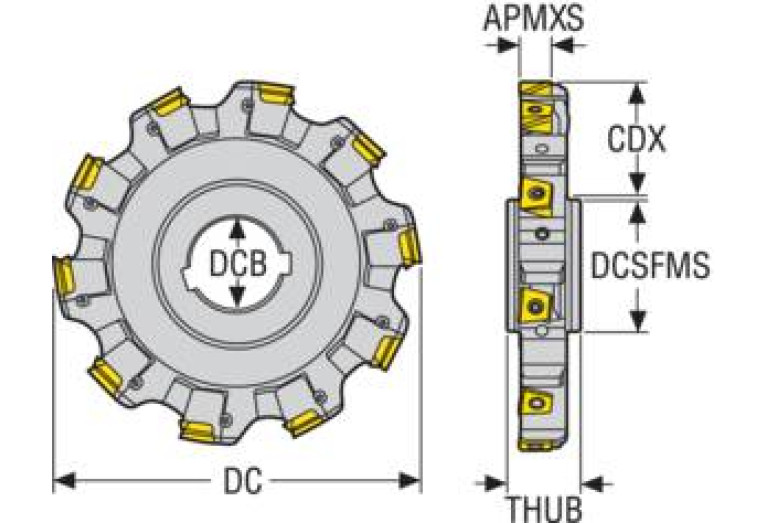

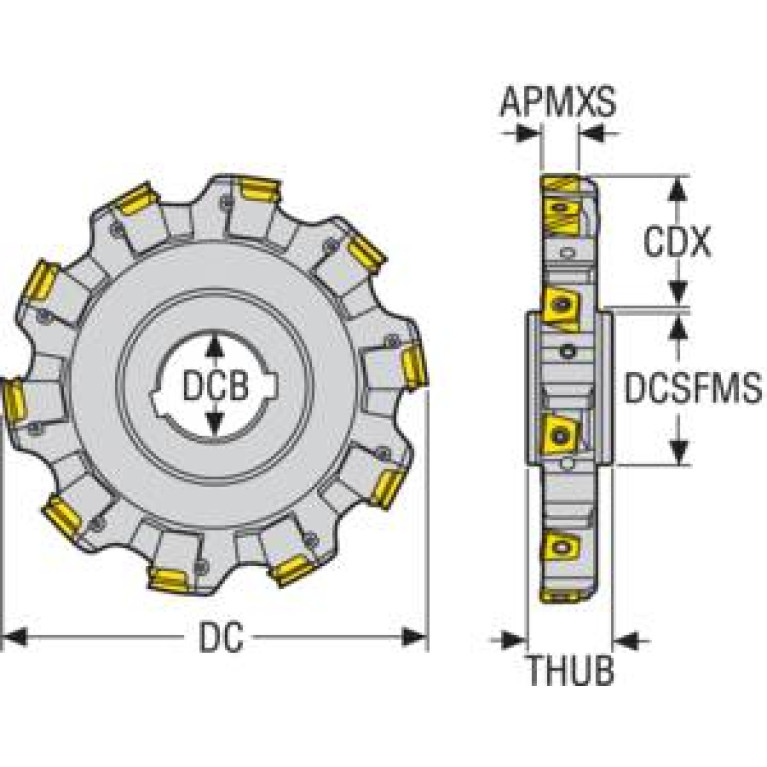

DC Cutting diameter
315 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
69 mm
DIN
FDA05002100
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
20
FamilyProducts
335.25-315.1317XL.50-20L
GAMF Rake angle radial
-8 Degree
GAMP Rake angle axial
-5 Degree
HAND Cutting direction
L - Left
ID Technical product number
02993814
Interface codes
J6 /
ISYC Subclass
308-06 - Half-side slot milling cutter
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA05002100
MILTTY Mill tool type ISO
E - Disc mill - one side cutting
Name Identifying order number
335.25-315.1317XL.50-20L
OAL Overall length
17 mm
RPMX Rotational speed maximum
5200 1/min
Working process
No working processes available
ZEFF Face effective cutting edge count
20
ZEFP Peripheral effective cutting edge count
20
