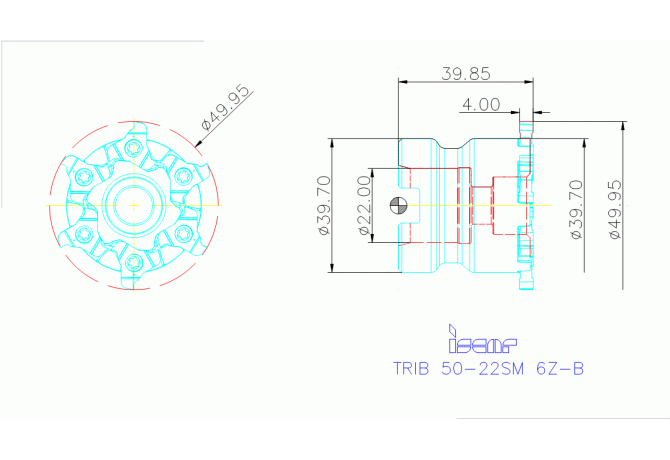

TRIB 50-22SM 6Z-B

TRIB 50-22SM 6Z-B TRIB 50-22SM 6Z-B

TRIB 50-22SM 6Z-B

Iscar
Артикул: 2301958
В наличии
В корзину
Описание
Характеристики
BD Body diameter
39.7 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
4.8 mm
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
4 mm
CWX Cutting width maximum
6.5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
39.7 mm
DIN
FDA02200205
FamilyProducts
Grooving Shell Mills with Triple-Edged Precision Ground Inserts
HAND Cutting direction
R - Right
ID Technical product number
2301958
Interface codes
J6 / J61
ISO
FDA02G2200H$07
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
TRI 16RK-5.0-0.2
LOC-02 ISO
IS$$52996259471374
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-52996259471374
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G2200H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200205
MILTTY Mill tool type ISO
C - Disc mill - three side cutting
Name Identifying order number
TRIB 50-22SM 6Z-B
OAL Overall length
41.15 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.24 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
