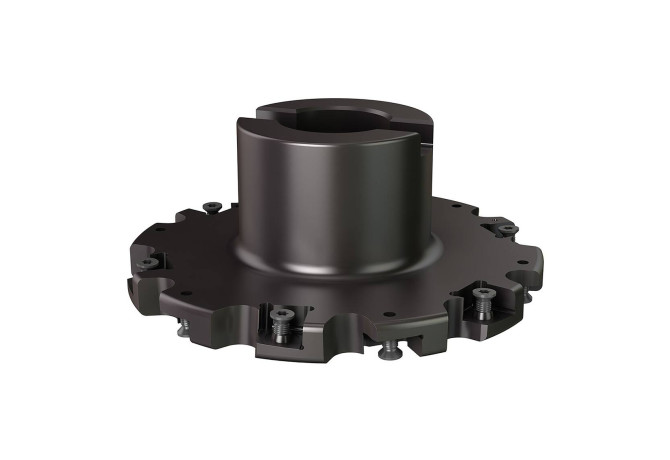

Главная Каталог продукции Toolunited 17 308-05 - Full-side slot milling cutter R335.19-05.00-0.50-6

R335.19-05.00-0.50-6

R335.19-05.00-0.50-6 R335.19-05.00-0.50-6 R335.19-05.00-0.50-6 R335.19-05.00-0.50-6

R335.19-05.00-0.50-6

Seco
Артикул: 02869770
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
31 mm
CICT Cutting item count
18
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
12.7 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
127 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
57.15 mm
DIN
FDA12502220
FamilyProducts
R335.19-05.00-0.50-6
GAMF Rake angle radial
-12 Degree
GAMP Rake angle axial
-3 Degree
HAND Cutting direction
R - Right
ID Technical product number
02869770
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SN1207 4L
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12502220
Name Identifying order number
R335.19-05.00-0.50-6
OAL Overall length
50.8 mm
RPMX Rotational speed maximum
5300 1/min
Working process
No working processes available
WT Weight of item
1.61 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
