Главная Каталог продукции Toolunited 17 308-05 - Full-side slot milling cutter FDN D4.0-0.375-08-LN12

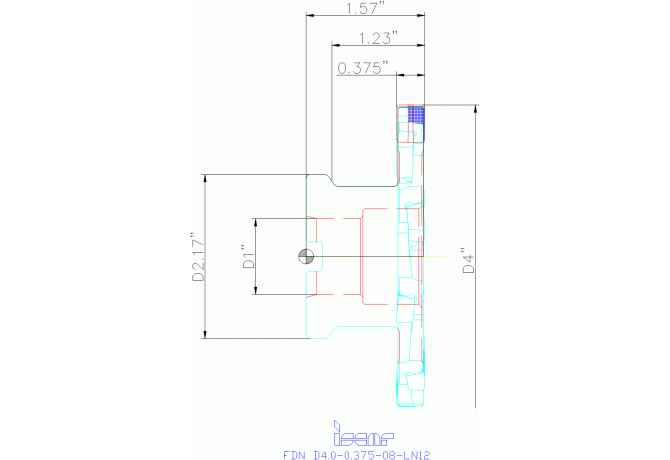

FDN D4.0-0.375-08-LN12

FDN D4.0-0.375-08-LN12 FDN D4.0-0.375-08-LN12

FDN D4.0-0.375-08-LN12

Iscar
Артикул: 3103145
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
B1B Cutting edge length Pos. B
12.7 mm
B2A Insert width Pos. A
12.7 mm
B2B Insert width Pos. B
12.7 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
9.52 mm
C1B Insert thickness Pos. B
9.52 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
27.178 mm
CICT Cutting item count
10
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
9.525 mm
CWX Cutting width maximum
10.0076 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
54.864 mm
DIN
FDA10002220
FamilyProducts
Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts
HAND Cutting direction
R - Right
ID Technical product number
3103145
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LNET 126508-TN
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-LN1265 3N
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
Name Identifying order number
FDN D4.0-0.375-08-LN12
OAL Overall length
39.878 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
35.052 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
