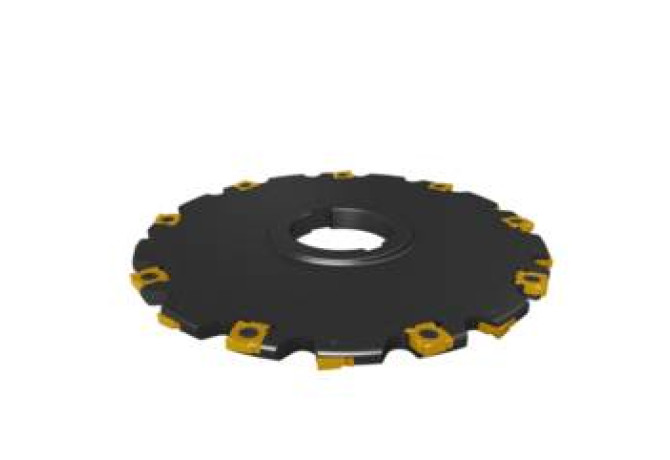

Главная Каталог продукции Toolunited 17 308-05 - Full-side slot milling cutter 335.19-08.00-0.50-9

335.19-08.00-0.50-9

335.19-08.00-0.50-9 335.19-08.00-0.50-9 335.19-08.00-0.50-9 335.19-08.00-0.50-9

335.19-08.00-0.50-9

Seco
Артикул: 02869739
В наличии
В корзину
Описание
Характеристики

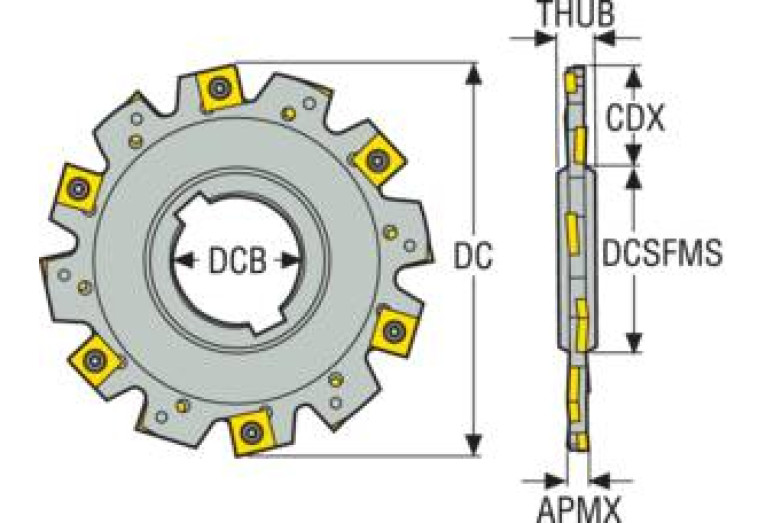

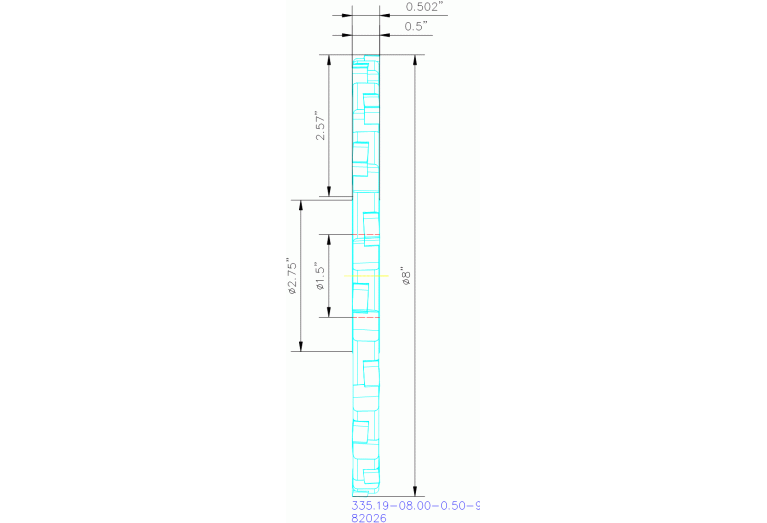

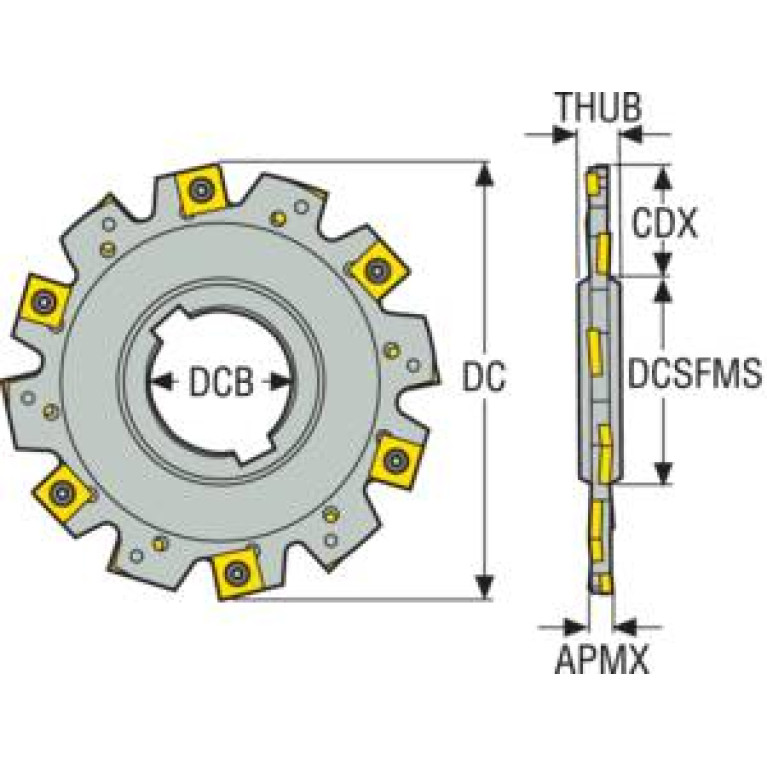

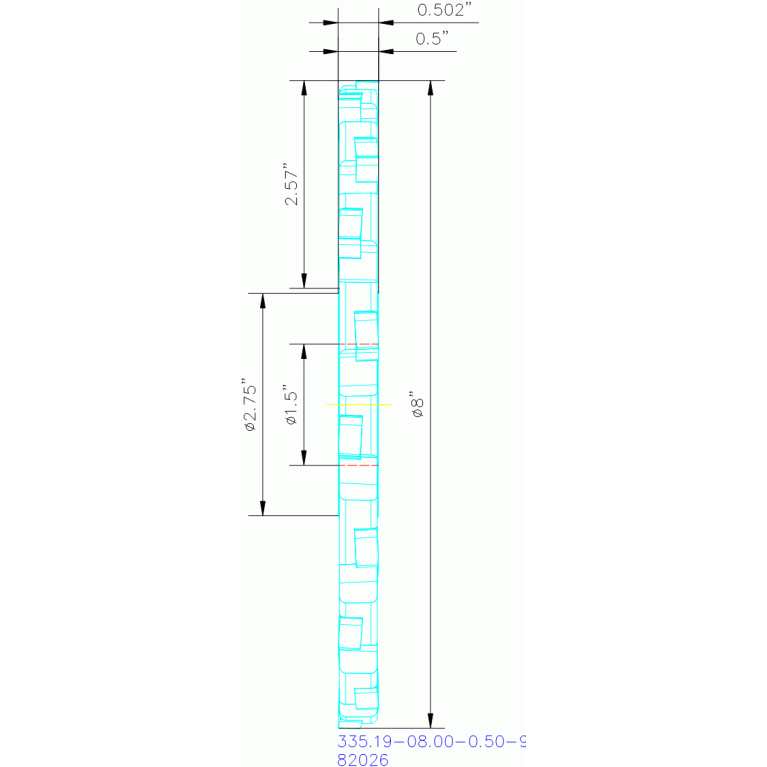

BI Block index
1
CCONMS Connection count machine side
2
CDX Cutting depth maximum
65.4 mm
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
12.7 mm
DC Cutting diameter
203.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
69.85 mm
DIN
FDA15002120
FamilyProducts
335.19-08.00-0.50-9
GAMF Rake angle radial
-12 Degree
GAMP Rake angle axial
-3 Degree
HAND Cutting direction
R - Right
ID Technical product number
02869739
Interface codes
J6 / J61
ISO
FDA21S1500H$06
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-01 BI Block index
1
LOC-01 ISO
SO$$SN1207**3LB****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SO 335 19-1207
LOC-02 BI Block index
2
LOC-02 ISO
SO$$SN1207**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA21S1500H$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002120
Name Identifying order number
335.19-08.00-0.50-9
OAL Overall length
12.7 mm
RPMX Rotational speed maximum
4200 1/min
Working process
No working processes available
WT Weight of item
2.5 kg
ZEFP Peripheral effective cutting edge count
9
