Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts SD572-1062-212-1250R7

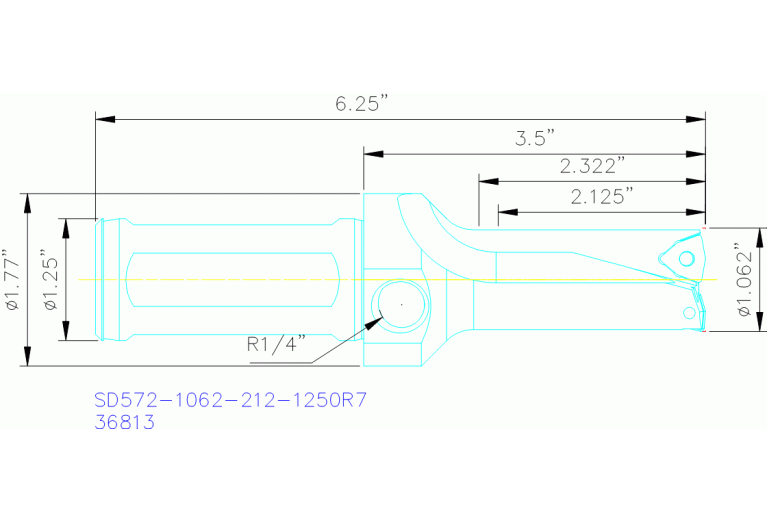

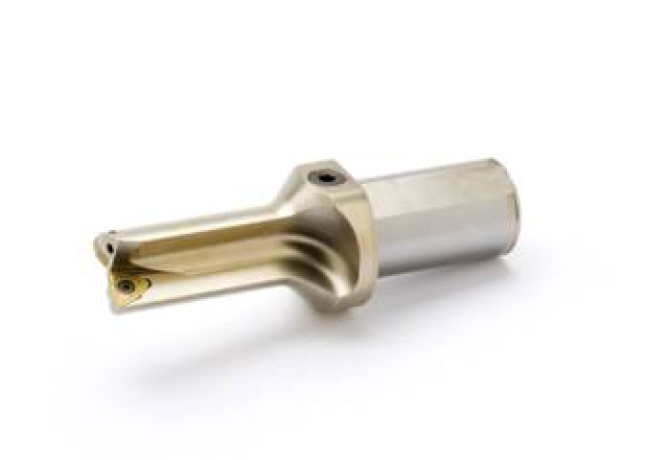

SD572-1062-212-1250R7

SD572-1062-212-1250R7 SD572-1062-212-1250R7 SD572-1062-212-1250R7 SD572-1062-212-1250R7

SD572-1062-212-1250R7

Seco
Артикул: 02602133
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
6.14 mm
B1B Cutting edge length Pos. B
5.07 mm
B3A Inscribed circle diameter Pos. A
9.525 mm
B3B Inscribed circle diameter Pos. B
7.94 mm
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
3.18 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
26.975 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
32.975 mm
Delivery state valid from
4/24/2018
DIN
ZYL12501025
FamilyProducts
SD572-1062-212-1250R7
HAND Cutting direction
R - Right
ID Technical product number
02602133
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISO
ZYL10S1250h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
88.95 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501025
LPR Protruding length
88.95 mm
LS Shank length
76.2 mm
LU Usable length
58.95 mm
Name Identifying order number
SD572-1062-212-1250R7
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
167.64 mm
SIG Point angle 1st step
175 Degree
Working process
BVB - Drilling
WT Weight of item
0.82 kg
