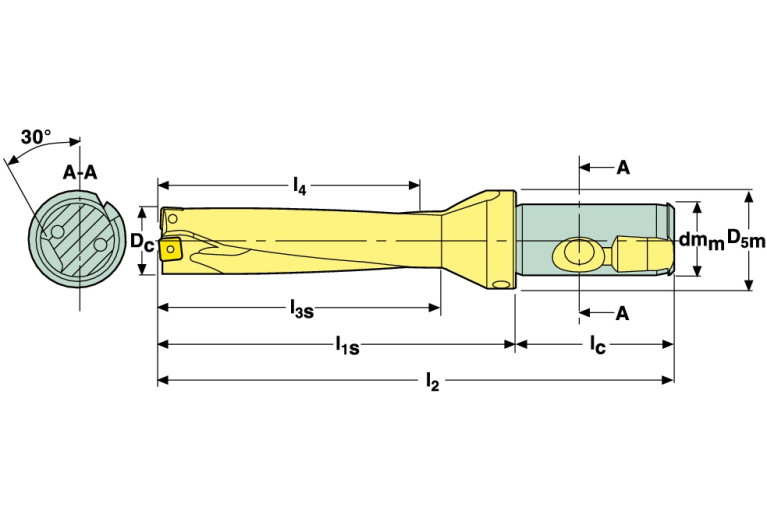

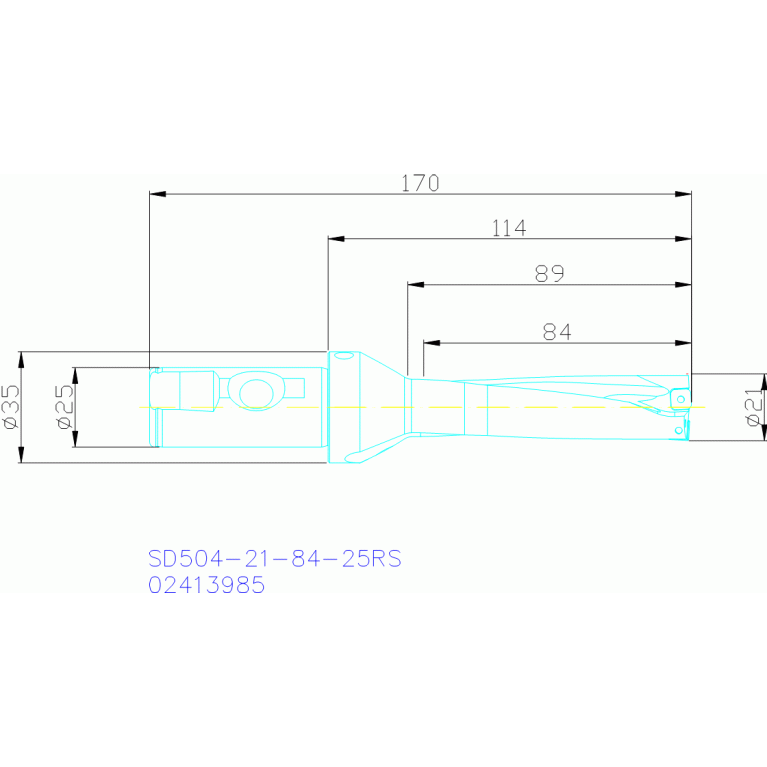

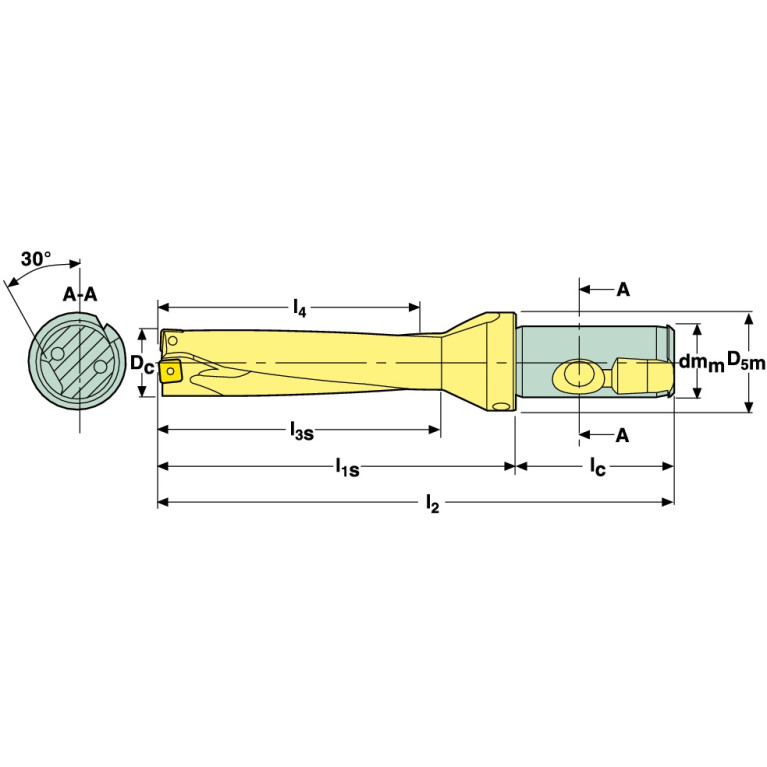

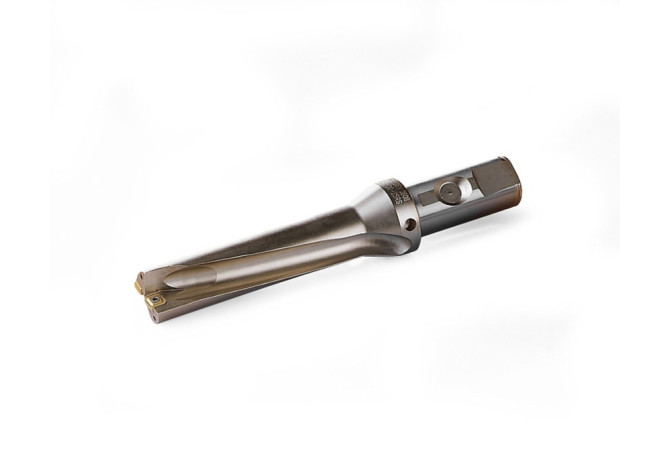

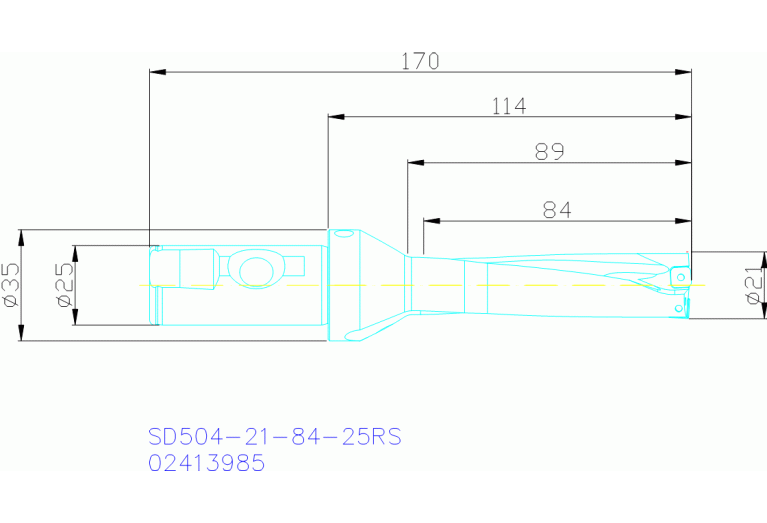

Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts SD504-21-84-25RS

SD504-21-84-25RS

SD504-21-84-25RS SD504-21-84-25RS SD504-21-84-25RS SD504-21-84-25RS

SD504-21-84-25RS

Seco
Артикул: 02413985
В наличии
В корзину
Описание
Характеристики
A1B Cutting edge angle major Pos. B
90 Degree
A2B Clearance angle major Pos. B
7 Degree
B1B Cutting edge length Pos. B
6.35 mm
B3B Inscribed circle diameter Pos. B
6.35 mm
BLDB Tool style code Position B
2
C1B Insert thickness Pos. B
2.38 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter minimum
21 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DF Flange diameter
35 mm
DIN
ZYL02501005
FamilyProducts
SD504-21-84-25RS
HAND Cutting direction
R - Right
ID Technical product number
02413985
Interface codes
J6 /
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
114 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SCGX060204-P1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SCGX060204
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501005
LPR Protruding length
114 mm
LS Shank length
56 mm
LU Usable length
89 mm
MIID Master insert identification
SCGX060204-P1
Name Identifying order number
SD504-21-84-25RS
NOF Flute count
2
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
170 mm
SIG Point angle 1st step
175 Degree
Working process
BVB - Drilling
WT Weight of item
0.5 kg
Номер таблицы (BI) / Block index (BI)
1
