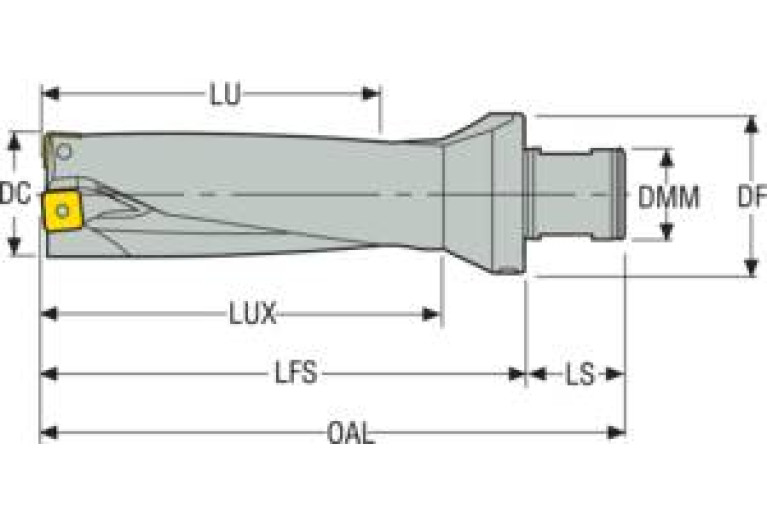

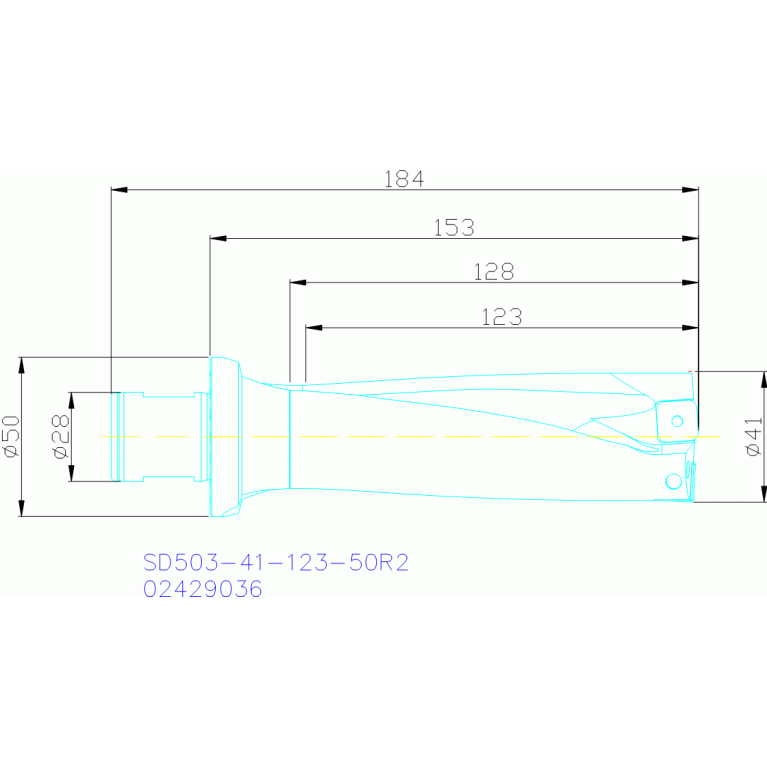

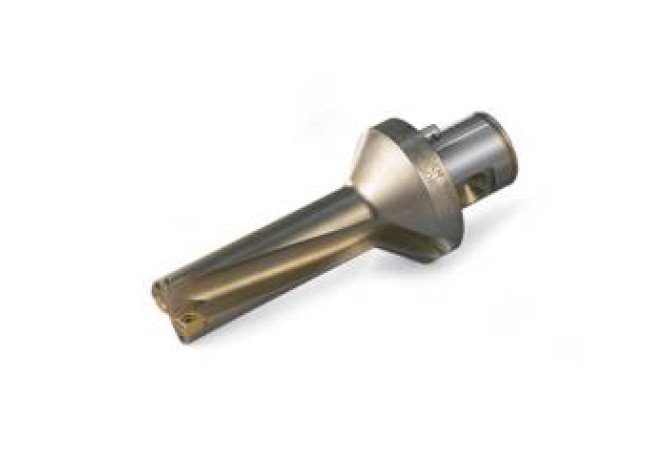

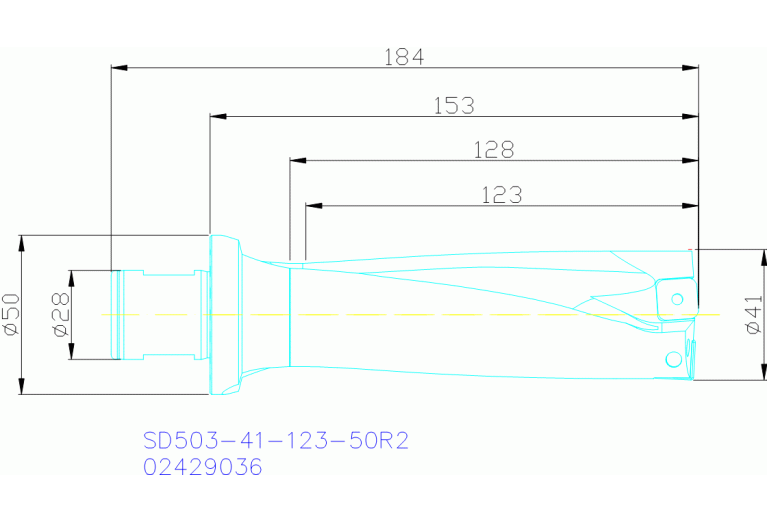

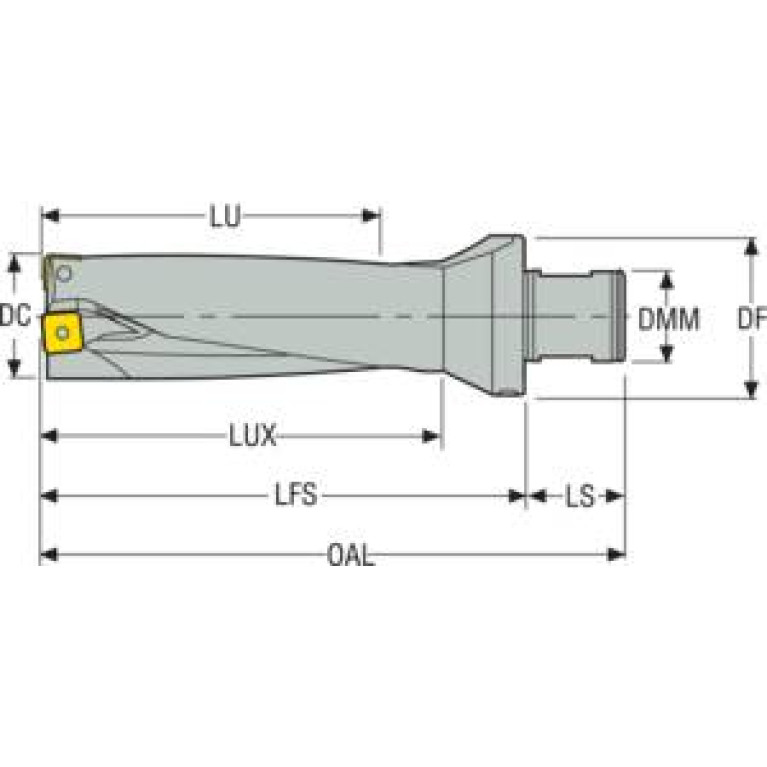

Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts SD503-41-123-50R2

SD503-41-123-50R2

SD503-41-123-50R2 SD503-41-123-50R2 SD503-41-123-50R2 SD503-41-123-50R2

SD503-41-123-50R2

Seco
Артикул: 02429036
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
12.7 mm
B1B Cutting edge length Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
4.76 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
41 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
42 mm
Delivery state valid from
4/24/2018
DF Flange diameter
50 mm
DIN
ABS05000105
FamilyProducts
SD503-41-123-50R2
HAND Cutting direction
R - Right
ID Technical product number
02429036
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
153 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
28 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS05000105
LPR Protruding length
153 mm
LS Shank length
31 mm
LU Usable length
128 mm
Name Identifying order number
SD503-41-123-50R2
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
184 mm
SIG Point angle 1st step
176 Degree
Working process
BVB - Drilling
WT Weight of item
1 kg
