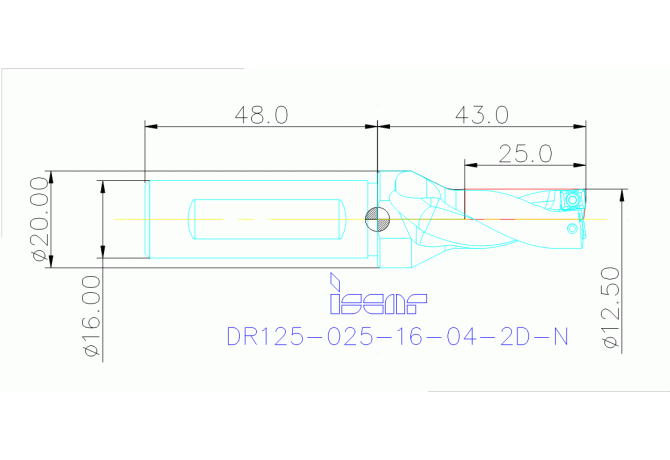

DR125-025-16-04-2D-N

Артикул: 3202348

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

12.9 mm

DIN

ZYL01601115

FamilyProducts

Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

ID Technical product number

3202348

Interface codes

J6 / J61

ISO

ZYL11G1600h$06

ISYC Subclass

306-01 - Twist drill for indexable inserts

LF Functional length

42.62 mm

LOC-01 BI Block index

LOC-01 ISO

IS$$215341778819530

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-215341778819530

LOC-02 BI Block index

LOC-02 ISO

IS$$215341778819530

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-215341778819530

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601115

LPR Protruding length

43 mm

LS Shank length

48 mm

LU Usable length

25 mm

Name Identifying order number

DR125-025-16-04-2D-N

OAL Overall length

91 mm

PL Point length

0.38 mm

SIG Point angle 1st step

172 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.1 kg
