Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts DFSP0563R2SSF075

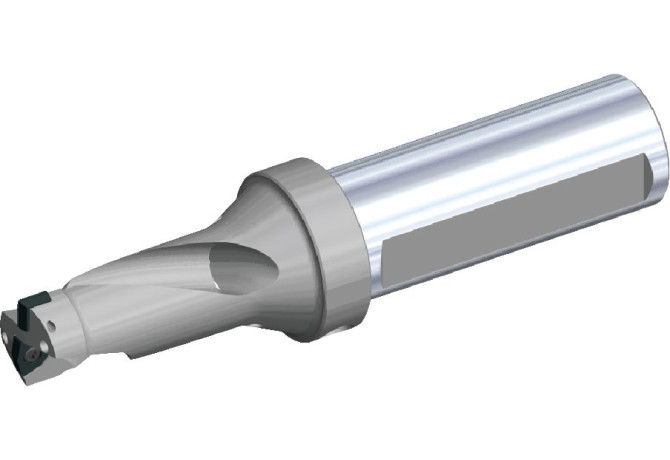

DFSP0563R2SSF075

DFSP0563R2SSF075

DFSP0563R2SSF075

DFSP0563R2SSF075

DFSP0563R2SSF075

Kennametal

Артикул: 5689602

В наличии

В корзину

Описание

Характеристики

A1B Cutting edge angle major Pos. B

90 Degree

A2B Clearance angle major Pos. B

11 Degree

BLDA Tool style code Position A

7

BLDB Tool style code Position B

2

C1B Insert thickness Pos. B

2.4638 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

2

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

14.3002 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1

DIN

ZYL07502335

FamilyProducts

Drill Fix DFSP Bodies Flange Shank, 2xD, Inch

HAND Cutting direction

R - Right

ID Technical product number

5689602

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-03 CCFMS Connection code form

23

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07502335

LPR Protruding length

52.324 mm

LS Shank length

50.8 mm

LU Usable length

28.702 mm

MTP Clamping type code 1st step

S - Screwed on across the bore, with counter bore

Name Identifying order number

DFSP0563R2SSF075

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

103.124 mm

PL Point length

0.254 mm

Working process

BVB - Drilling
