Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts D3120-02-36.00F32-P24

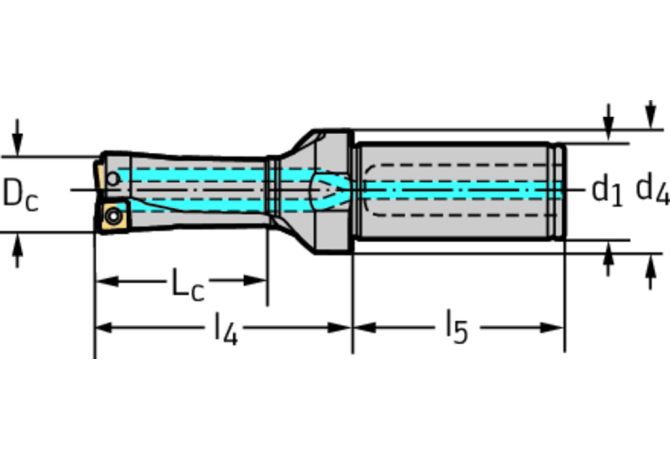

D3120-02-36.00F32-P24

D3120-02-36.00F32-P24

D3120-02-36.00F32-P24

D3120-02-36.00F32-P24

Walter

Артикул: 7098428

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

6

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

2

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

36 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03201115

FamilyProducts

Indexable insert drills D3120

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

ID Technical product number

7098428

Interface codes

J6 / J61

ISO

ZYL11G3200h$06

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

96 mm

LF Functional length

102.9 mm

LOC-03 CCFMS Form

11

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL11G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201115

LPR Protruding length

104 mm

LS Shank length

60 mm

LU Usable length

72 mm

MTP Clamping type code 1st step

S - Screwed on across the bore, with counter bore

Name Identifying order number

D3120-02-36.00F32-P24

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

164 mm

PL Point length

1.1 mm

RPMX Rotational speed maximum

5000 1/min

SIG Point angle 1st step

169.8 Degree

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

BVB - Drilling

WT Weight of item

0.847 kg
