Главная Каталог продукции Toolunited 17 306-01 - Twist drill for indexable inserts D3120-02-17.00F25-P21

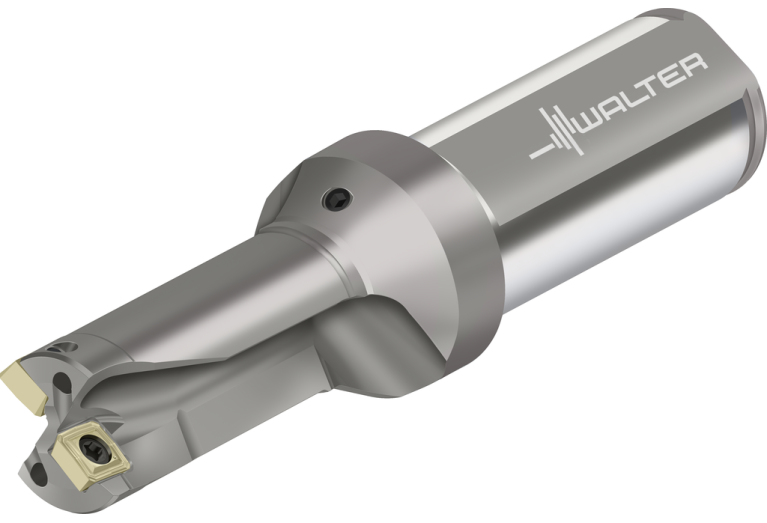

D3120-02-17.00F25-P21

D3120-02-17.00F25-P21 D3120-02-17.00F25-P21 D3120-02-17.00F25-P21

D3120-02-17.00F25-P21

Walter
Артикул: 7098379
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
6
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

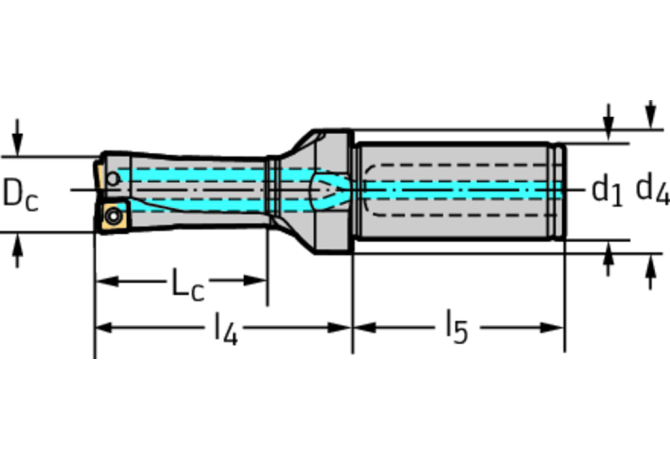

DC Cutting diameter minimum
17 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501115
FamilyProducts
Indexable insert drills D3120
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
ID Technical product number
7098379
Interface codes
J6 / J61
ISO
ZYL11G2500h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
51 mm
LF Functional length
58.2 mm
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL11G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501115
LPR Protruding length
59 mm
LS Shank length
56 mm
LU Usable length
34 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
D3120-02-17.00F25-P21
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
115 mm
PL Point length
0.8 mm
RPMX Rotational speed maximum
9200 1/min
SIG Point angle 1st step
175.8 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.306 kg
