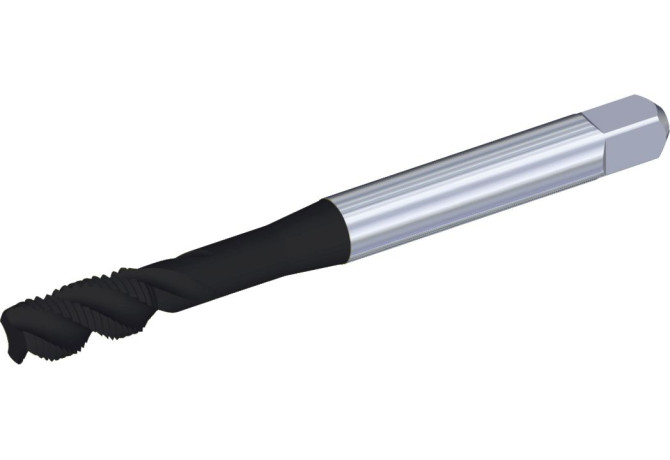

T838NC02500-20R2B-D6 KSP39

T838NC02500-20R2B-D6 KSP39 T838NC02500-20R2B-D6 KSP39

T838NC02500-20R2B-D6 KSP39

Kennametal
Артикул: 6173278
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
5/15/2017
DIN
ZYL00452115
FamilyProducts
GOtap T838 Spiral-Flute HSS-E Tap
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
KSP39
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
6173278
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452115
Name Identifying order number
T838NC02500-20R2B-D6 KSP39
NOF Flute count
3
OAL Overall length
80 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 376
TCTR Thread tolerance class
2B
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
UNC
THL Thread cutting part length
10 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
