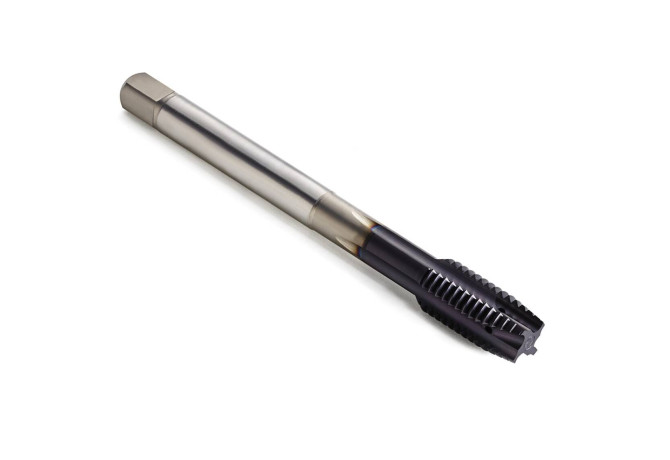

Главная Каталог продукции Toolunited 17 301-01 - Thread cutting tap with offset shank MTP-M30X3.50ISO6HX-TB-P004-A

MTP-M30X3.50ISO6HX-TB-P004-A

MTP-M30X3.50ISO6HX-TB-P004-A MTP-M30X3.50ISO6HX-TB-P004-A MTP-M30X3.50ISO6HX-TB-P004-A MTP-M30X3.50ISO6HX-TB-P004-A

MTP-M30X3.50ISO6HX-TB-P004-A

Seco
Артикул: 02999943
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
AlTiN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02202115
FamilyProducts
MTP-M30X3.50ISO6HX-TB-P004-A
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
02999943
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202115
Name Identifying order number
MTP-M30X3.50ISO6HX-TB-P004-A
NOF Flute count
4
OAL Overall length
165.42 mm
PLCD Gate diameter
26.5 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376
TCTR Thread tolerance class
6HX
TD Thread diameter
30 mm
THFT Thread form type
M
THL Thread cutting part length
45 mm
THOD Thread designation
M30x3.5-6HX
TP Thread pitch
3.5 mm
Working process
BG - Tapping
WT Weight of item
0.489 kg
