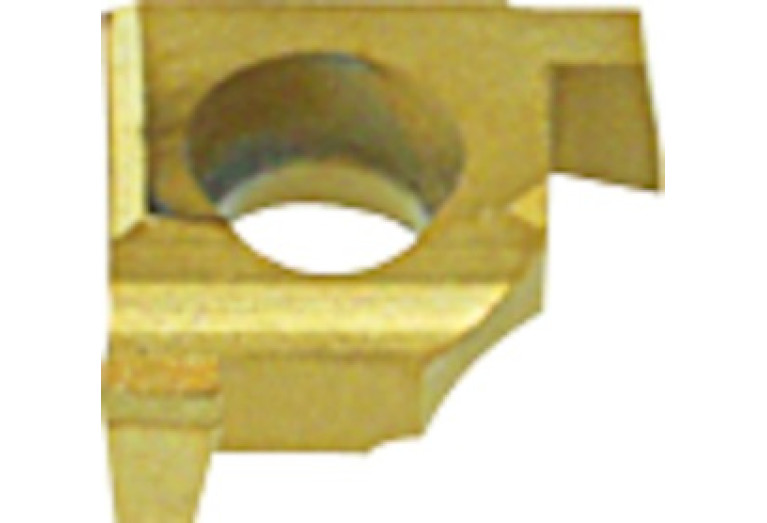

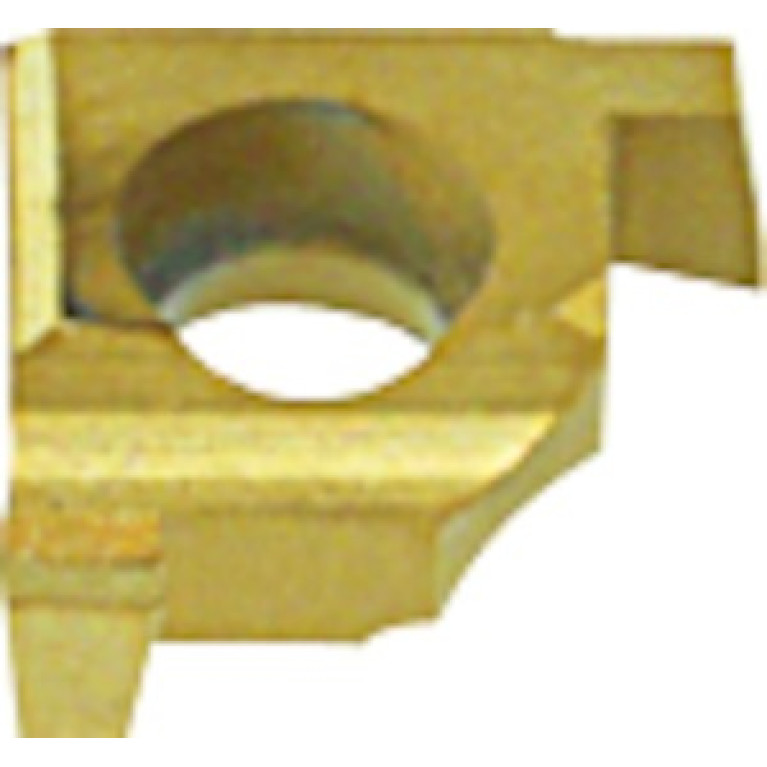

Главная Каталог продукции Toolunited 17 202-05 - Insert, two cutting edges for profiling and partial threading 271010 0,7

271010 0,7

Артикул: 271010 0,7

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

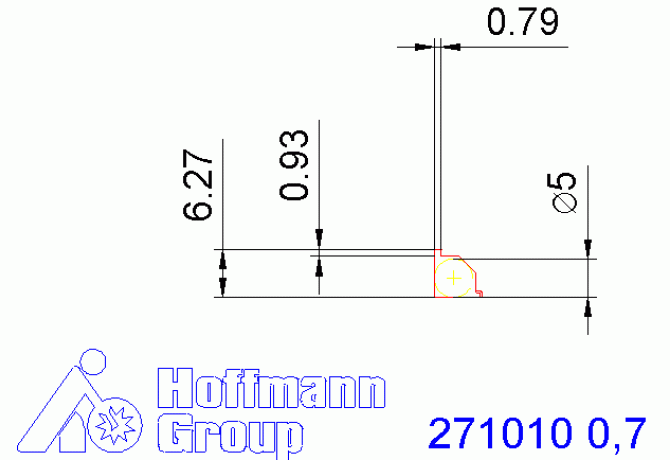

CRE Spot radius

0.08 mm

CW Cutting width

0.79 mm

Delivery state valid from

1/11/2017

FamilyProducts

GARANT Partial profile insert for DIN 472, internal, right-h

GAN Insert rake angle

13 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

5 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

7.1 mm

Interface codes

ISYC Subclass

202-05 - Insert, two cutting edges for profiling and partial threading

Name Identifying order number

271010 0,7

NOF Flute count

PDX Profile distance X

0.395 mm

PDY Profile distance Y

1 mm

PFS Profile form

S1 Insert thickness total

1.85 mm

TPT Thread profile type

T - Partial profile

TTP Thread type

I - Internal thread

W1 Insert width

1.85 mm

Working process

DEA - Outer diameter grooving

WT Weight of item

0.001 kg
