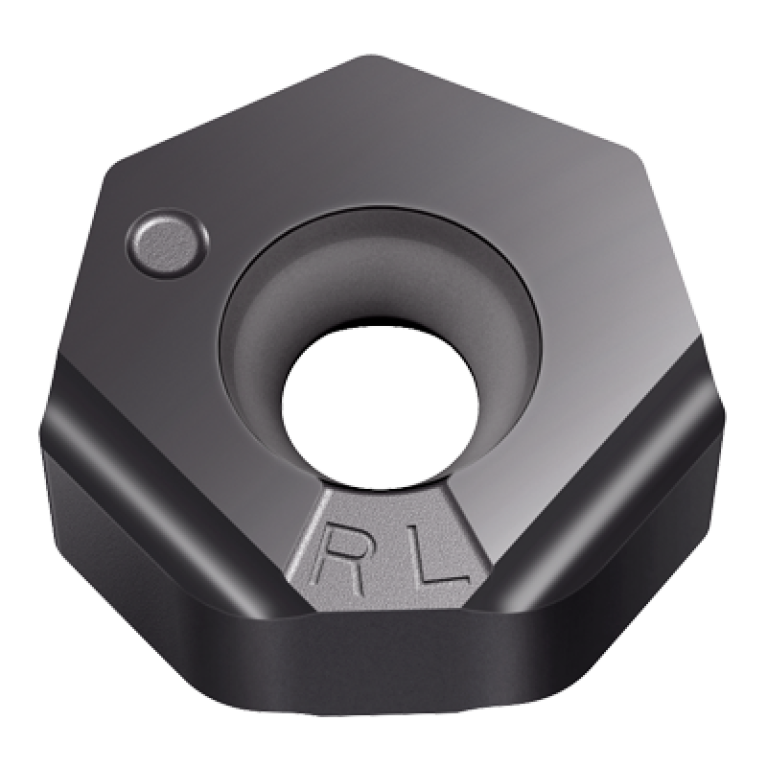

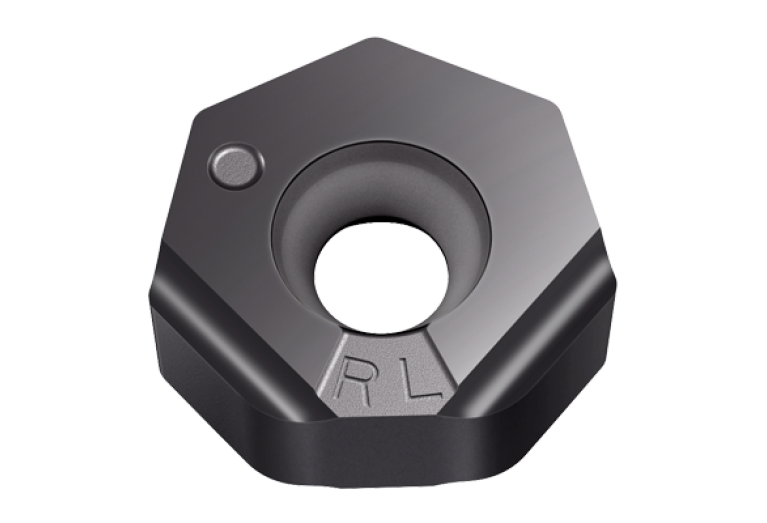

WNEU1305ZEN4C-M MC5020

WNEU1305ZEN4C-M MC5020

Mitsubishi Materials
Артикул: 10572351
В наличии
В корзину
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
M
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN-Al2O3-Ti Compou
COMPC Company code
MI - Mitsubishi Materials

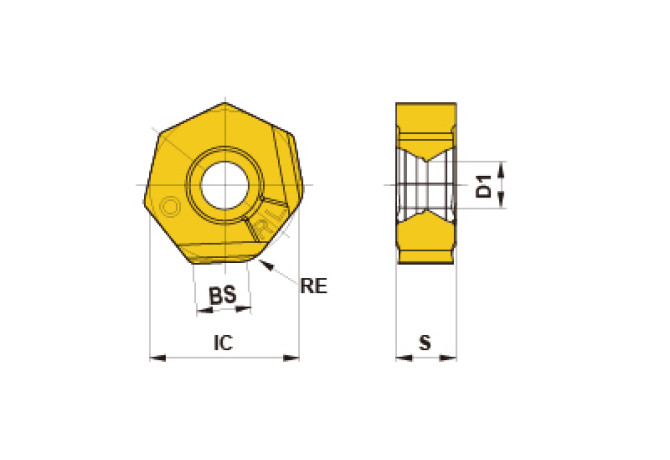

D1 Fixing hole diameter
4.2 mm
Delivery state valid from
2/5/2017
FamilyProducts
wiper insert for AHX440S
GRDMFG Grade manufacturers designation
MC5020
IC Inscribed circle diameter
13.4 mm
ID Technical product number
10572351
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
MI$$WN1305$$3NB$$$$
ISYC Subclass
201-00 - Regular Insert unspecified
LOC-03 ISO
MI$$WN1305$$3NB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
WNEU1305ZEN4C-M MC5020
NOI Insert index count
2
RE Corner radius
2.7 mm
S Insert thickness
5.09 mm
TCE Tipped cutting edge code
S
Working process
No working processes available
