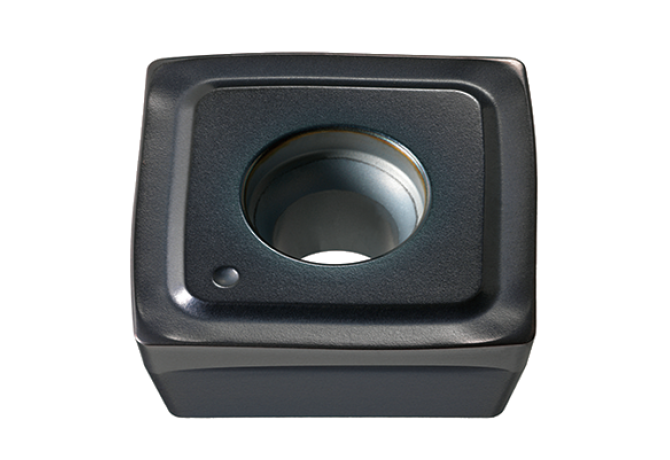

SOMX135908-UH DP8020

SOMX135908-UH DP8020

Mitsubishi Materials
Артикул: 10568316
В наличии
В корзину
Характеристики
AN Clearance angle major
11 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
UH
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
(Al,Ti,Si)N
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
4.7 mm
Delivery state valid from
12/5/2016
EPSR Insert included angle
90 Degree
FamilyProducts
Insert for MVX
GRDMFG Grade manufacturers designation
DP8020
IC Inscribed circle diameter
13.8 mm
ID Technical product number
10568316
IFS Insert mounting style code
0 - Various
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
MI$$SO1359080RB$$08
ISYC Subclass
201-00 - Regular Insert unspecified
LOC-03 ISO
MI$$SO1359080RB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
SOMX135908-UH DP8020
NOI Insert index count
4
RE Corner radius
0.8 mm
S Insert thickness
5.9 mm
TCE Tipped cutting edge code
S
Working process
No working processes available
