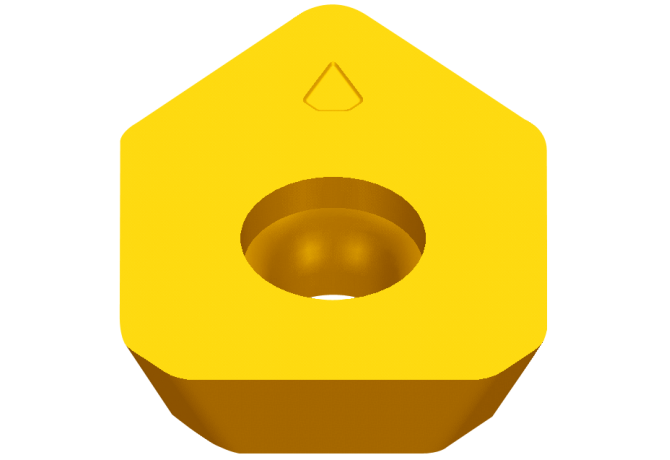

SEET12T3-W YBG202

Артикул: SEET12T3-W YBG202

В наличии

В корзину

Описание

Характеристики

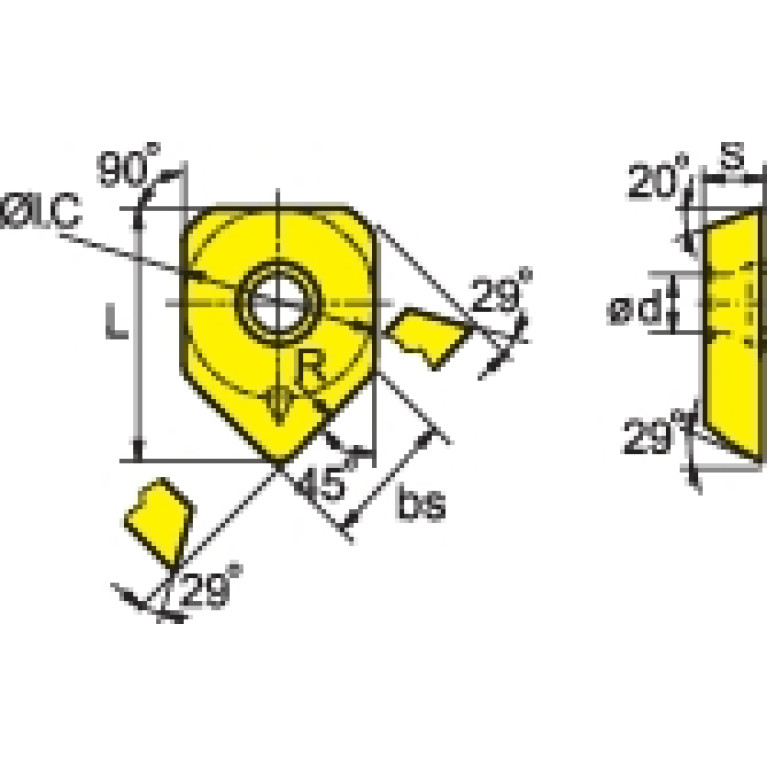

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

29 Degree

BS Wiper edge length

9.46 mm

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

nc-TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

4.1 mm

Delivery state valid from

0.0844 kg

DIN

ZCC-SEET12T3

EPSR Insert included angle

90 Degree

FamilyProducts

SE** milling insert

GRD2ND Standard designation of the grade 2nd application

M10-M25

GRDMFG Grade manufacturers designation

YBG202

GRDPRIO Standard designation of the grade main application

P10-P30

IC Inscribed circle diameter

13.4 mm

ID Identifying order number

SEET12T3-W YBG202

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

17.82 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ZCC-SEET12T3

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
