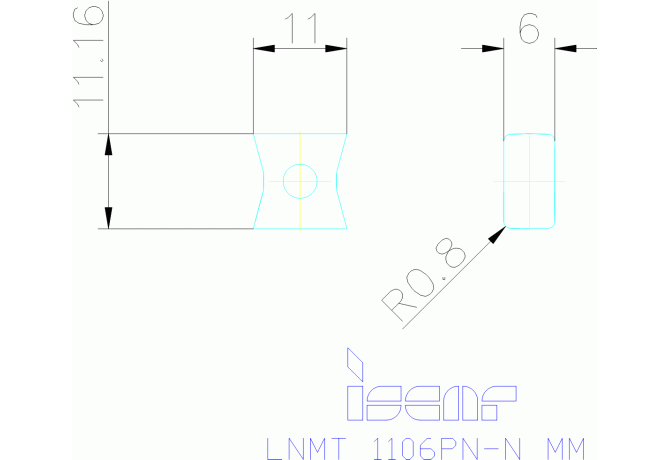

LNMT 1106PN-N MM IC808

Артикул: 5681314

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-560318796705660

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Inserts with a Very Positive Chipformer and Reinforced Cutting Edge

GRDMFG Grade manufacturers designation

IC808

ID Technical product number

5681314

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$560318796705660

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

11.16 mm

LOC-03 ISO

IS$$560318796705660

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-560318796705660

Name Identifying order number

LNMT 1106PN-N MM IC808

RE Corner radius

0.8 mm

S Insert thickness

11 mm

W1 Insert width

6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
