Главная Каталог продукции Toolunited 17 201-00 - Regular Insert unspecified 4.21558R667 K110M

4.21558R667 K110M

Артикул: 4.21558R667 K110M

В наличии

В корзину

Описание

Характеристики

BN Face land width

0.1 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state

LH - Stocked

DIN

KH-WP 215R66R312

FamilyProducts

FIX-PERFECT INSERT MILLING 2C

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K110M

GRDPRIO Standard designation of the grade main application

HW-K15

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

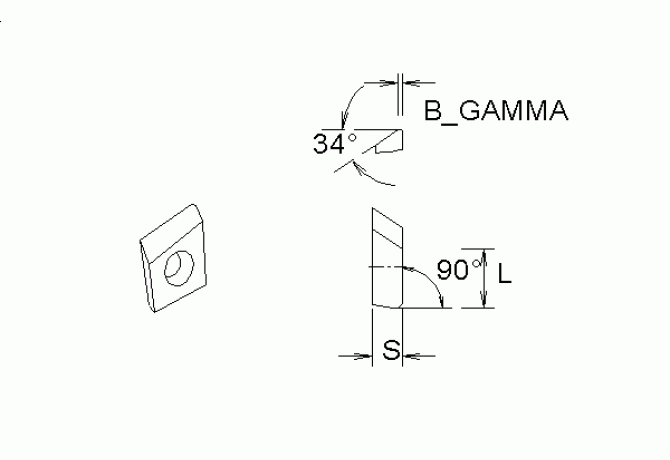

L Cutting edge length

10.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP 215R66R312

Name Identifying order number

4.21558R667 K110M

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

Working process

No working processes available
