Главная Каталог продукции Toolunited 17 201-00 - Regular Insert unspecified 4.21503R615 K110M

4.21503R615 K110M

Артикул: 1191260

В наличии

В корзину

Описание

Характеристики

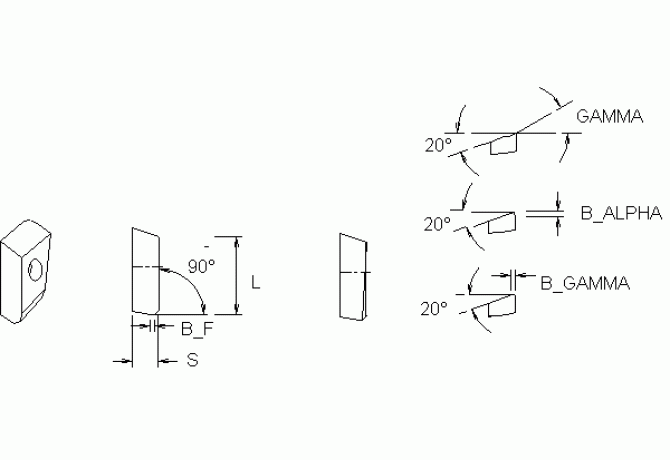

CHW Corner chamfer width

0.7 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/4/2011

DIN

KH-WP 21503RALUR313

FamilyProducts

FIX-PERFECT INSERT MILLING 2C

GB Face land angle

34 Degree

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K110M

GRDPRIO Standard designation of the grade main application

HW-K15

ID Technical product number

1191260

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

14.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP 21503RALUR313

Name Identifying order number

4.21503R615 K110M

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

Working process

No working processes available
