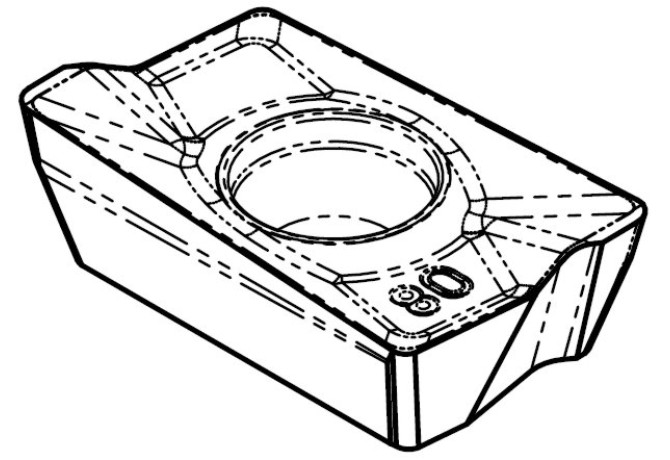

Главная Каталог продукции Toolunited 17 201-05 - Parallelogram-shaped insert APPT1604PDERGD KC935M

APPT1604PDERGD KC935M

Артикул: APPT1604PDERGD KC935M

В наличии

В корзину

Описание

Характеристики

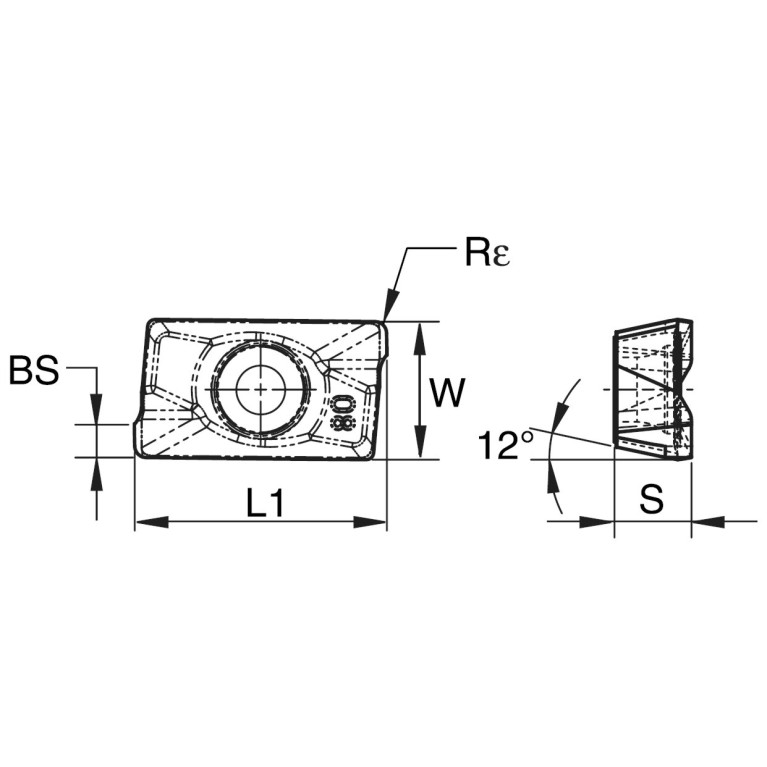

AN Clearance angle major

12 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.47 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2008

DIN

AP1604PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

APPT16-GD insert for milling

GRDMFG Grade manufacturers designation

KC935M

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

17.24 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1604PD3R

Name Identifying order number

APPT1604PDERGD KC935M

RE Corner radius

0.79 mm

S Insert thickness

5.26 mm

S1 Insert thickness total

5.26 mm

STDDES Standard designation

APPT1604PDERGD

TCINS Tolerance class insert

W1 Insert width

9.43 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling
