Главная Каталог продукции Toolunited 17 201-10 - Round insert RCGT120400-MN2 WNN10

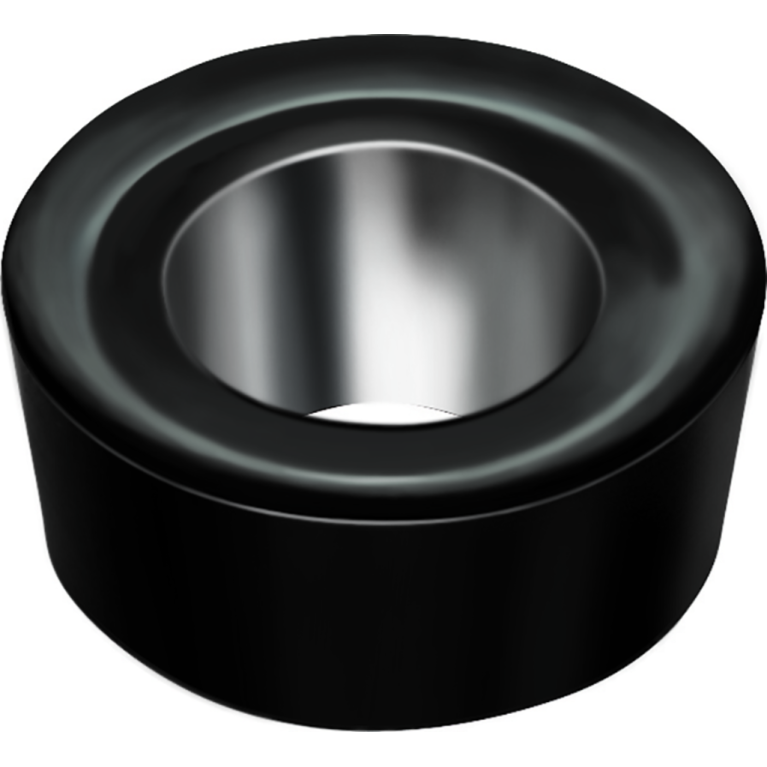

RCGT120400-MN2 WNN10

Артикул: 6955712

В наличии

В корзину

Описание

Характеристики

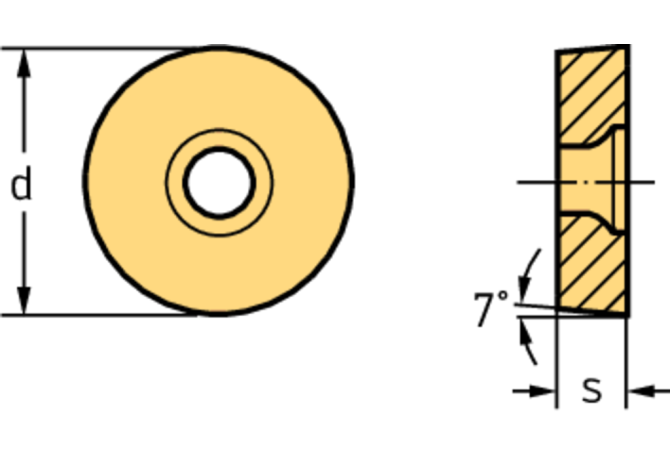

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

MN2

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

RC1204003N

FamilyProducts

Positive round RCGT

GRDMFG Grade manufacturers designation

WNN10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6955712

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC1204003NB$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC1204003NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M M-dimension

12.7 mm

MIID Master insert identification

RCGT120400 WNN10

Name Identifying order number

RCGT120400-MN2 WNN10

NameAnsi Identifying order number inch alternative

RCGT43-MN2 WNN10

S Insert thickness

4.762 mm

S1 Insert thickness total

4.762 mm

STDDES Standard designation

RCGT120400

STDDESAnsi Standard designation ANSI

RCGT430

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.007 kg
