Главная Каталог продукции Toolunited 17 201-07 - Trigon insert WNGG080404-MF1 CP200

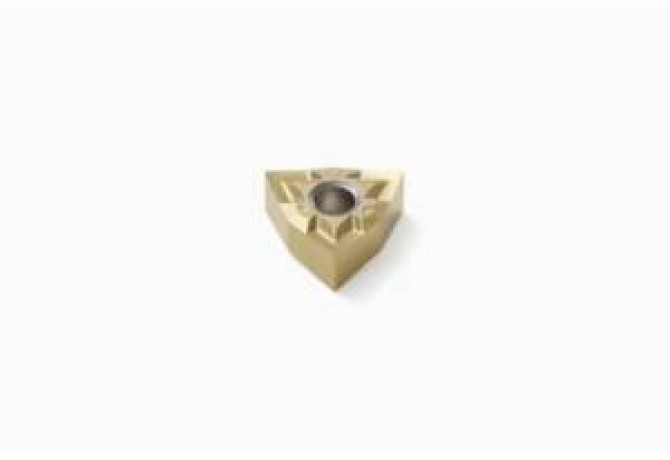

WNGG080404-MF1 CP200

Артикул: 02551391

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

MF1

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

WN0804042N

EPSR Insert included angle

80 Degree

FamilyProducts

WNGG080404-MF1 CP200

GRDMFG Grade manufacturers designation

CP200

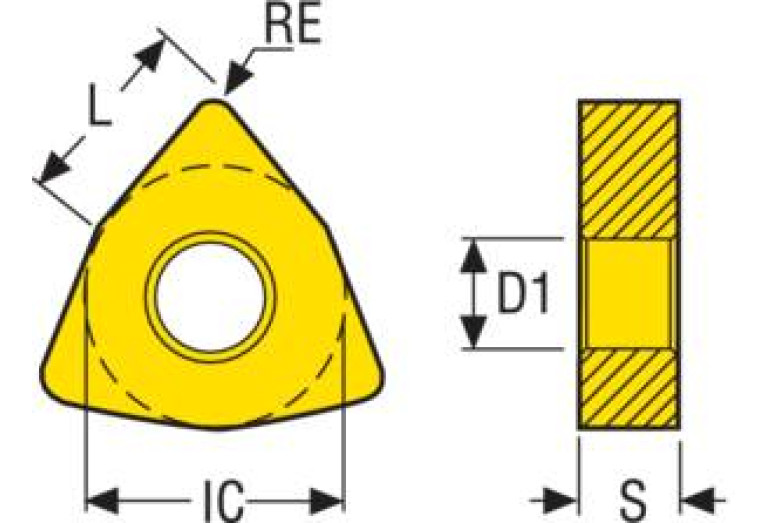

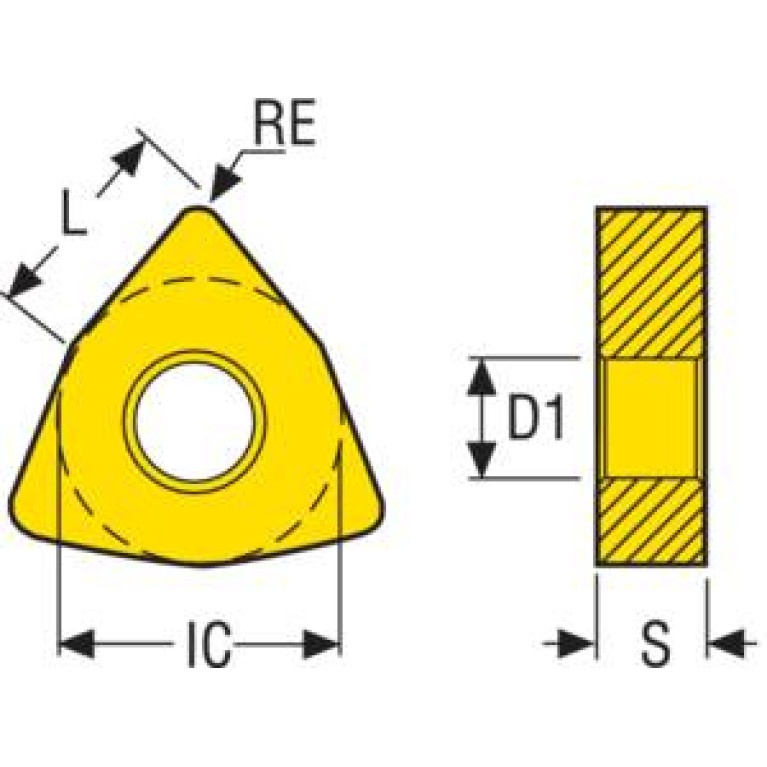

IC Inscribed circle diameter

12.7 mm

ID Technical product number

02551391

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN0804042NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LE Cutting edge effective length

8.3 mm

LOC-03 ISO

ISO$WN0804042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804042N

MIID Master insert identification

WNGG080404 CP200

Name Identifying order number

WNGG080404-MF1 CP200

NameAnsi Identifying order number inch alternative

WNGP431-MF1 CP200

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNGG080404

STDDESAnsi Standard designation ANSI

WNGG431

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.01 kg
