Главная Каталог продукции Toolunited 17 201-07 - Trigon insert WNGA060408S-01525-WZ CBN060K

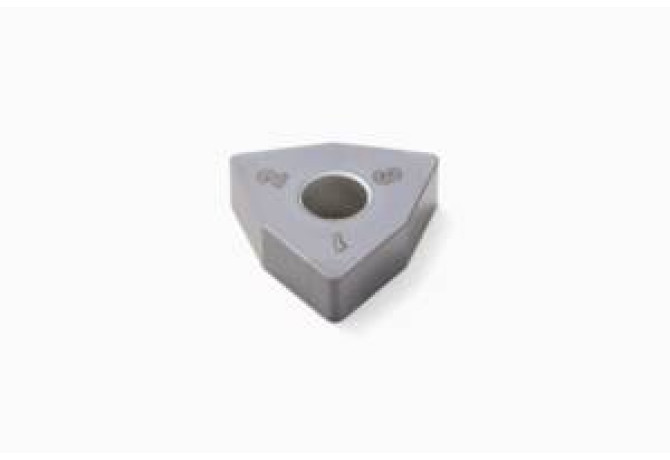

WNGA060408S-01525-WZ CBN060K

WNGA060408S-01525-WZ CBN060K WNGA060408S-01525-WZ CBN060K WNGA060408S-01525-WZ CBN060K

WNGA060408S-01525-WZ CBN060K

Seco
Артикул: 02776354
В наличии
В корзину
Описание
Характеристики

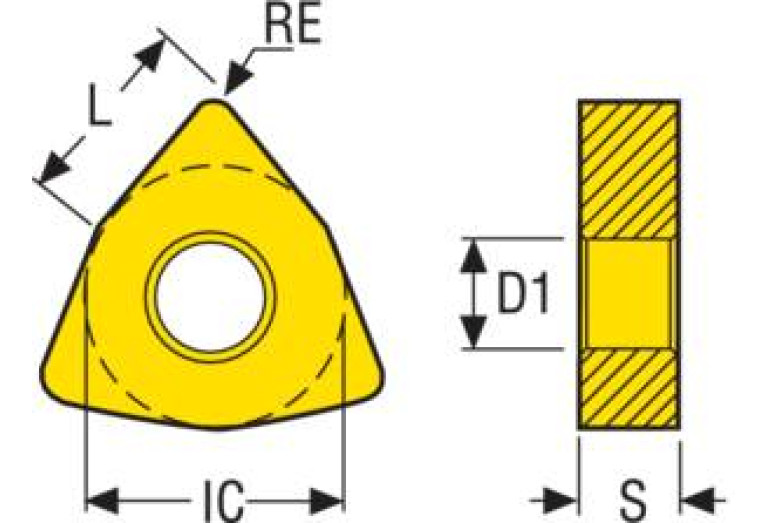

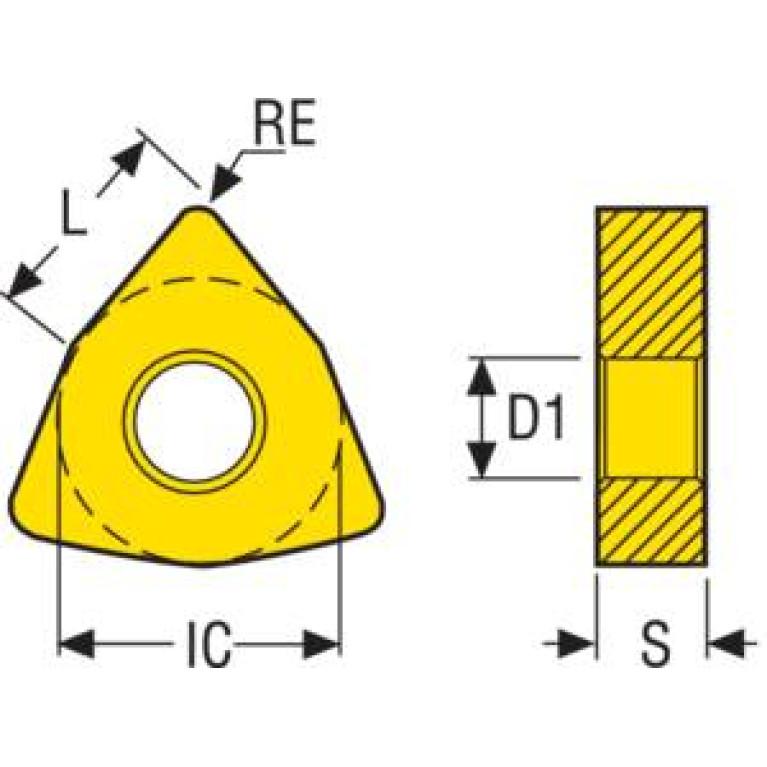

AN Clearance angle major
0 Degree
BS Wiper edge length
0.78 mm
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
SO - SECO Tools
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.81 mm
Delivery state valid from
12/1/2023
DIN
SO-WN0604 2N
EPSR Insert included angle
80 Degree
FamilyProducts
WNGA060408S-01525-WZ CBN060K
GRDMFG Grade manufacturers designation
CBN060K
IC Inscribed circle diameter
9.525 mm
ID Technical product number
02776354
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
6.515 mm
LE Cutting edge effective length
1.98 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SO-WN0604 2N
MIID Master insert identification
WNGA060408S CBN060K
Name Identifying order number
WNGA060408S-01525-WZ CBN060K
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNGA060408S
STDDESAnsi Standard designation ANSI
WNGA332S
TCINS Tolerance class insert
G
Working process
No working processes available
