P26325R25 WSP45S

Артикул: 7057777

В наличии

В корзину

Описание

Характеристики

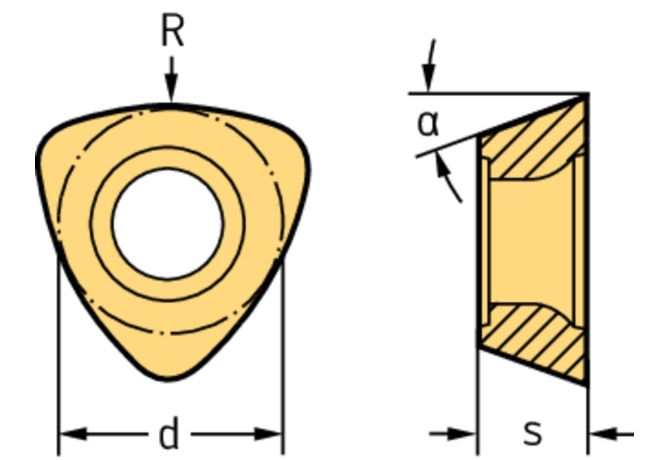

AN Clearance angle major

14 Degree

CBMD Chip breaker manufacturers designation

D57

CEMR Cutting edge major radius

25 mm

COMPC Company code

W - Walter

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-P263X500

FamilyProducts

Positive triangular P26325

GRDMFG Grade manufacturers designation

WSP45S

IC Inscribed circle diameter

13 mm

ID Technical product number

7057777

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P263X5253NB$$$$

ISYC Subclass

201-07 - Trigon insert

LOC-03 ISO

WR$$P263X5253NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P263X500

Name Identifying order number

P26325R25 WSP45S

RE Corner radius

0.4 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.009 kg
