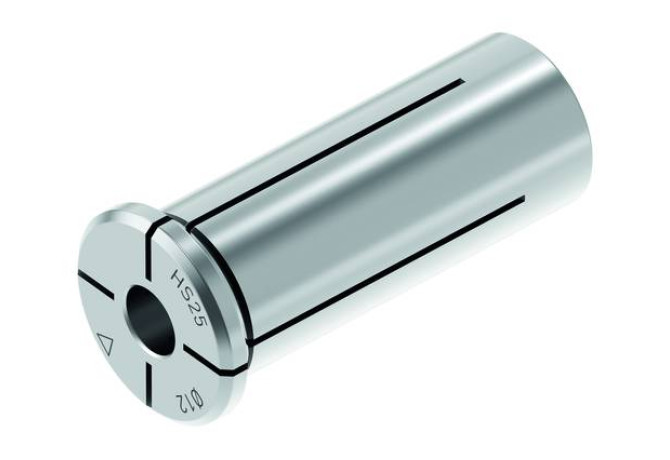

Главная Каталог продукции Toolunited 17 405-08 - Cylindrical clamping sleeve HCC75012C

HCC75012C

Артикул: 02522564

В наличии

В корзину

Описание

Характеристики

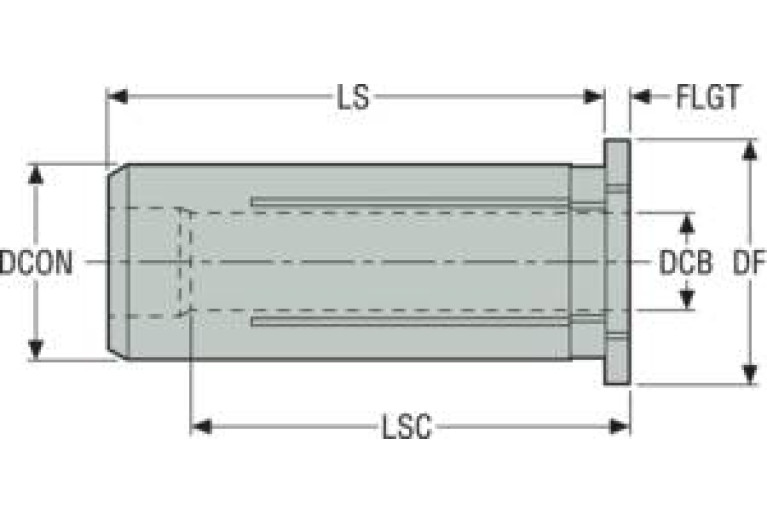

BD Body diameter

28.956 mm

CCSWS Connection code style

CCTWS Connection code type

ZYL

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0120

DCB Connection bore diameter

12 mm

Delivery state valid from

3/14/2020

FamilyProducts

HCC75012C

ID Technical product number

02522564

Interface codes

ISYC Subclass

405-08 - Cylindrical clamping sleeve

LCOL Collet length

52.578 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0120

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 DCONMS Diameter

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LSC Clamping length

44.958 mm

Name Identifying order number

HCC75012C

NameAnsi Identifying order number inch alternative

HCC750-12C

OAL Overall length

54.61 mm

WT Weight of item

0.1 kg
