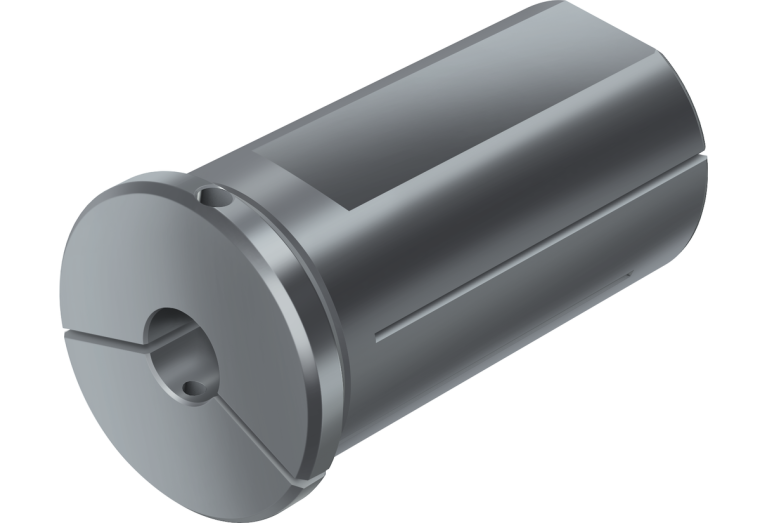

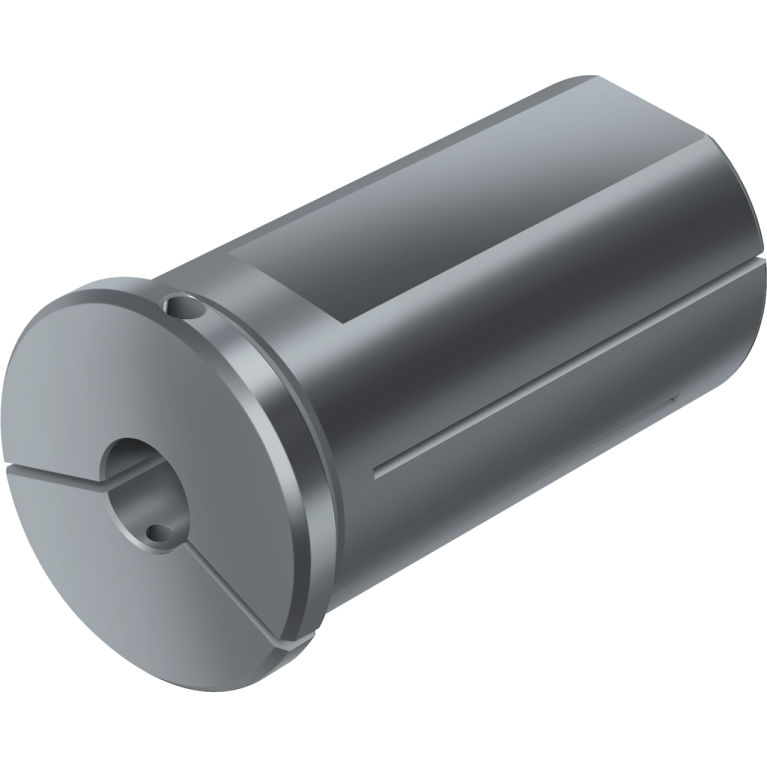

Главная Каталог продукции Toolunited 17 405-08 - Cylindrical clamping sleeve A2140-W25-R12-061

A2140-W25-R12-061

Артикул: 5205331

В наличии

В корзину

Описание

Характеристики

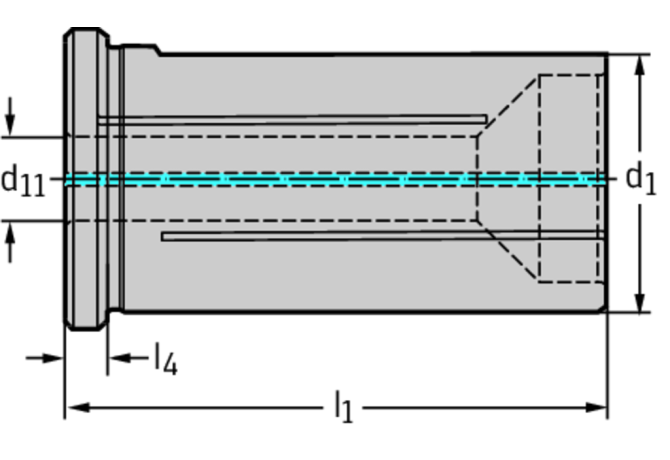

BD Body diameter

30 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0120

Delivery state valid from

12/1/2023

DIN

ZYL02501115

FamilyProducts

Boring bar holder A2140-W

ID Technical product number

5205331

Interface codes

J6 / J61

ISO

ZYL11G2500h$06

ISYC Subclass

405-08 - Cylindrical clamping sleeve

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0120

LOC-01 ISO

ZYL01G1200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200115

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0120

LOC-02 ISO

ZYL01R4724****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01202015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL11G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501115

LSC Clamping length

56 mm

Name Identifying order number

A2140-W25-R12-061

OAL Overall length

61 mm

TCDCONMS ISO-tolerance class shank diameter

WT Weight of item

0.167 kg
