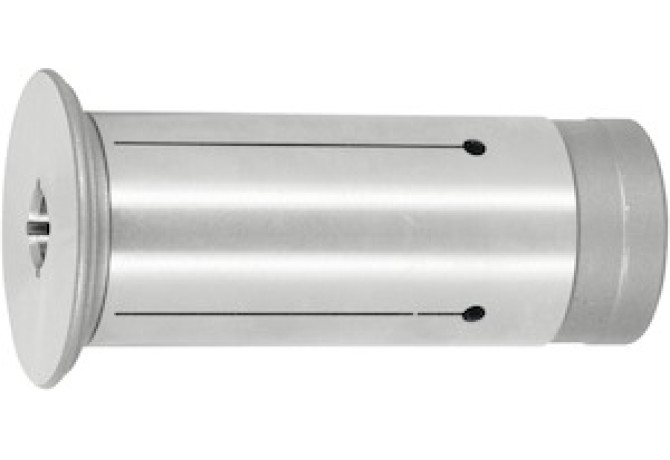

Главная Каталог продукции Toolunited 17 405-08 - Cylindrical clamping sleeve 302175 20

302175 20

302175 20 302175 20 302175 20

302175 20

Hoffmann Group
Артикул: 302175 20
В наличии
В корзину
Описание
Характеристики

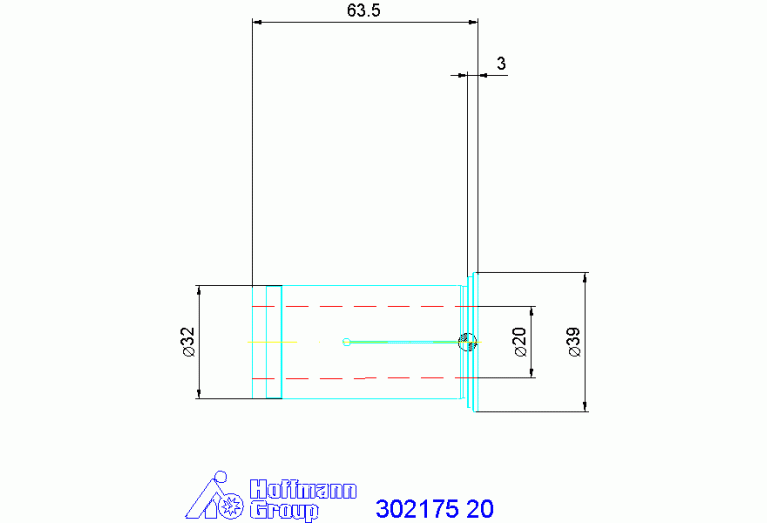

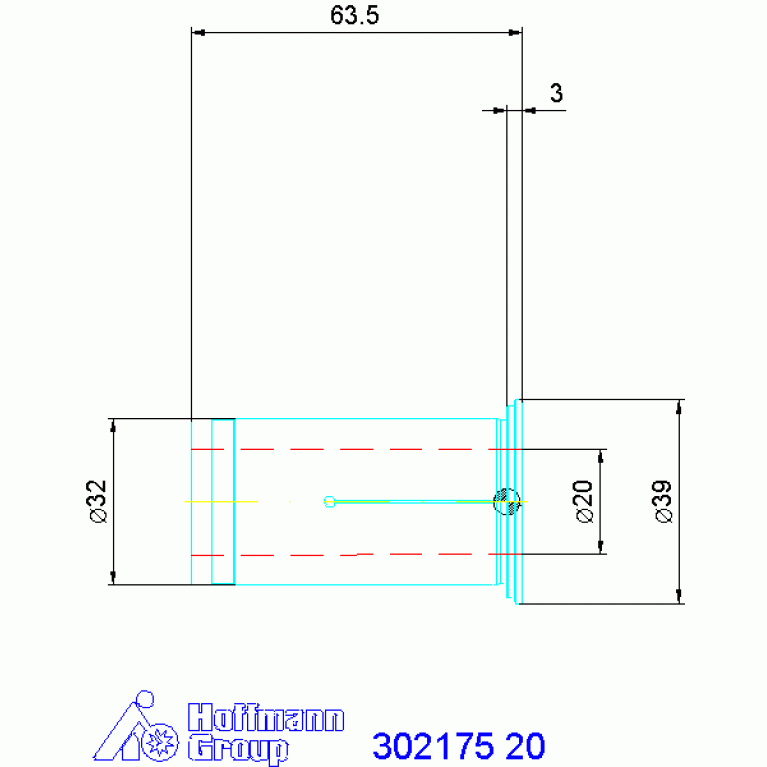

BD Body diameter
39 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COATN Coating / Покрытие
0
COLST Collet slot type
2 - On two side
COMPC Company code
HOG - Hoffmann Group
CZCWS Connection size code
0200
DCB Connection bore diameter
20 mm
DCBN Connection bore diameter minimum
20 mm
DCBX Connection bore diameter maximum
20 mm
Delivery state valid from
1/11/2017
DFC Functional diameter
32 mm
DIN
ZYL03200115
FamilyProducts
Slotted reducing adapter
Interface codes
J6 /
ISYC Subclass
405-08 - Cylindrical clamping sleeve
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LSC Clamping length
44.5 mm
LSCX Clamping length maximum
44.5 mm
Name Identifying order number
302175 20
OAL Overall length
63.5 mm
SEALP Sealing
1 - With sealing
SZID Size identification
20
WT Weight of item
0.3 kg
