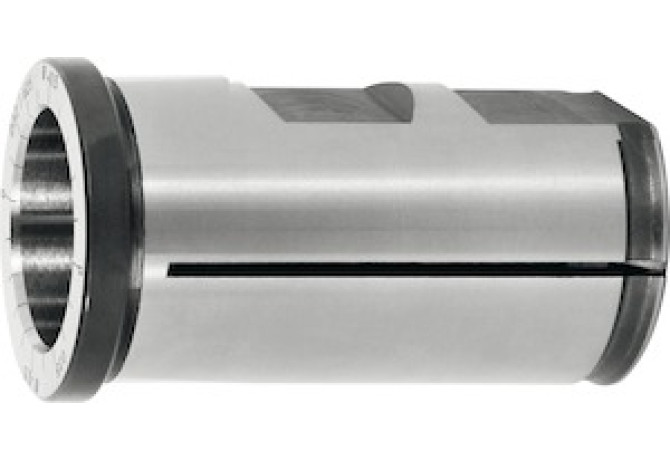

Главная Каталог продукции Toolunited 17 405-08 - Cylindrical clamping sleeve 236679 32

236679 32

236679 32 236679 32 236679 32

236679 32

Hoffmann Group
Артикул: 236679 32
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COATN Coating / Покрытие
0
COLST Collet slot type
2 - On two side
COMPC Company code
HOG - Hoffmann Group
CZCWS Connection size code
0320
DCB Connection bore diameter
32 mm
Delivery state valid from
1/11/2017
DIN
ZYL04001015
FamilyProducts
Eccentric clamping sleev
Interface codes
J6 /
ISYC Subclass
405-08 - Cylindrical clamping sleeve
LCOL Collet length
71 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200105
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001015
LSC Clamping length
76 mm
Name Identifying order number
236679 32
OAL Overall length
76 mm
SEALP Sealing
0 - Without sealing
SZID Size identification
32
UNNO Unified number
400
WT Weight of item
0.26 kg
