Главная Каталог продукции Toolunited 17 405-08 - Cylindrical clamping sleeve 05F58323216

05F58323216

05F58323216 05F58323216 05F58323216 05F58323216

05F58323216

Seco
Артикул: 00096492
В наличии
В корзину
Описание
Характеристики

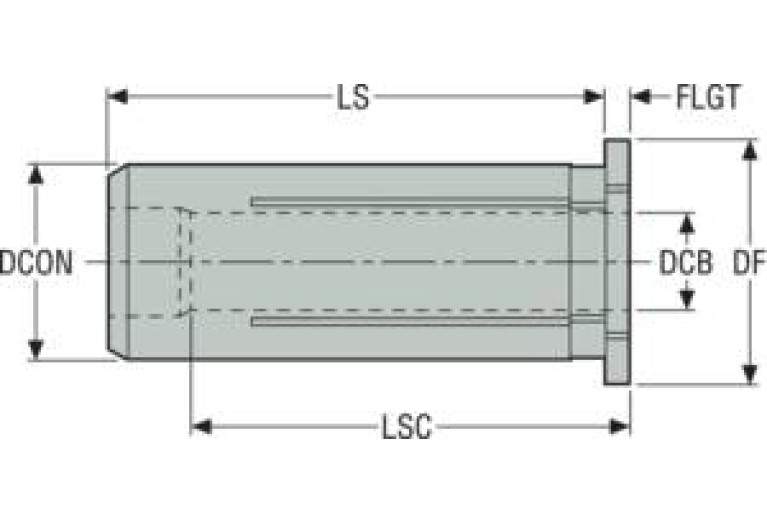

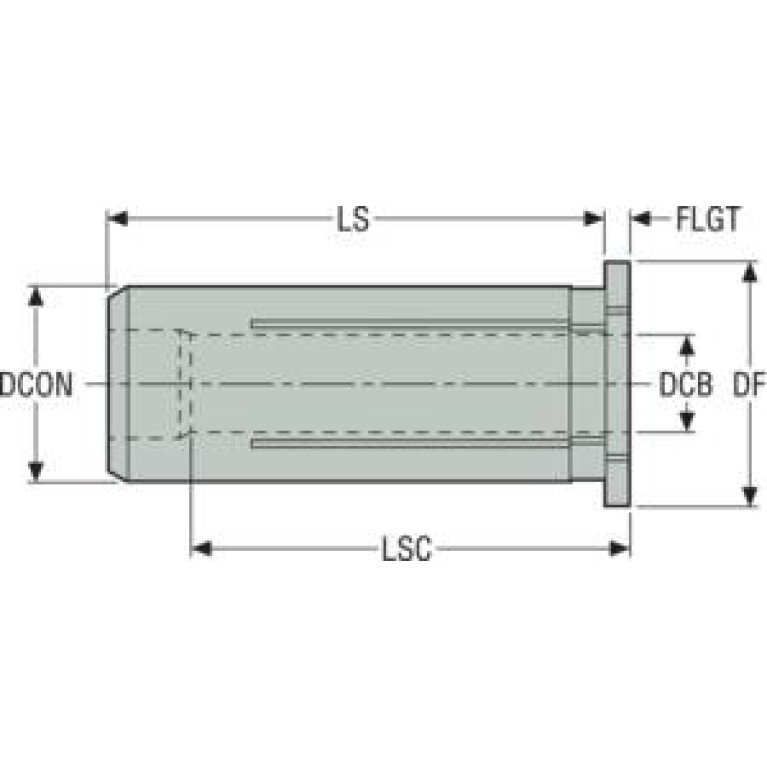

BD Body diameter
36 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0160
DCB Connection bore diameter
16 mm
Delivery state valid from
3/14/2020
FamilyProducts
05F58323216
ID Technical product number
00096492
Interface codes
/
ISYC Subclass

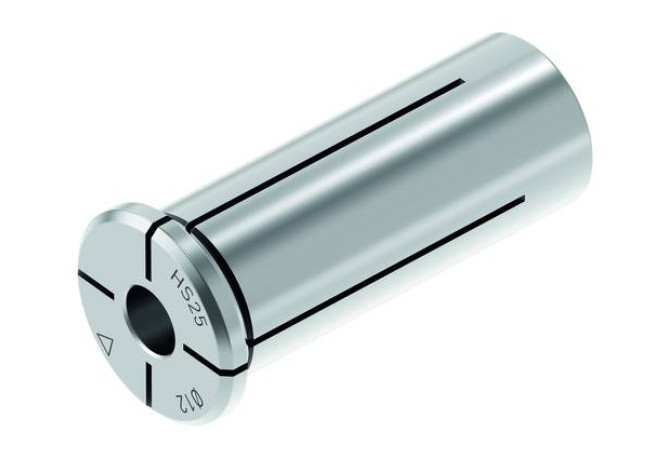

405-08 - Cylindrical clamping sleeve

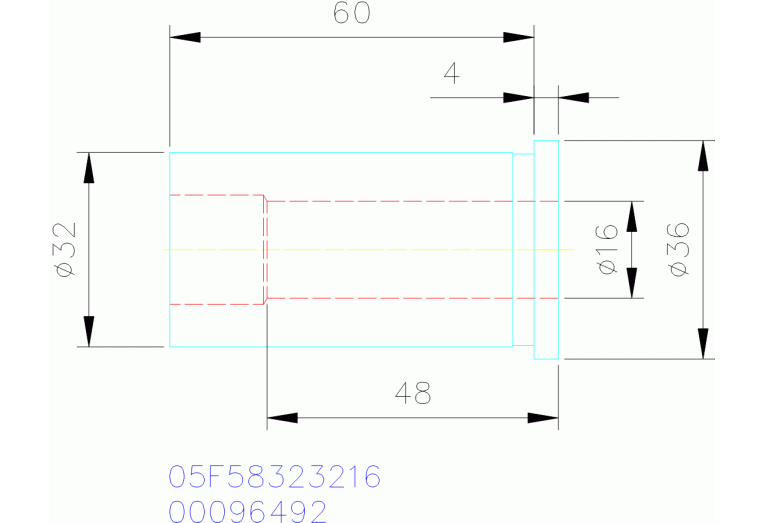

LCOL Collet length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0160
LOC-01 ISO
SZC05G3200$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600505
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LSC Clamping length
48 mm
LSCX Clamping length maximum
48 mm
Name Identifying order number
05F58323216
OAL Overall length
64 mm
WT Weight of item
0.26 kg
