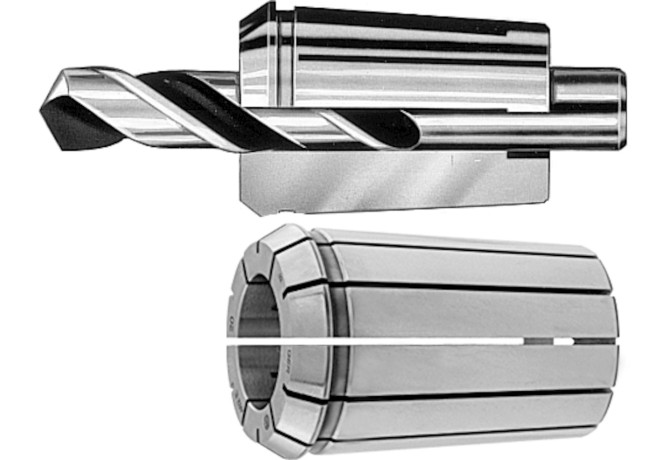

Главная Каталог продукции Toolunited 17 405-01 - Double angle collet 309550 14

309550 14

Артикул: 309550 14

В наличии

В корзину

Описание

Характеристики

BD Body diameter

35.05 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

2 - On two side

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

0140

DCB Connection bore diameter

14 mm

DCBN Connection bore diameter minimum

13.5 mm

DCBX Connection bore diameter maximum

14 mm

Delivery state valid from

11/2/2016

DFC Functional diameter

35.05 mm

DIN

SZD02500195

FamilyProducts

FAHRION OZ collet for chuck

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0140

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01400105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD02500195

LSCN Clamping length minimum

52 mm

Name Identifying order number

309550 14

OAL Overall length

52 mm

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6388

TG Taper ratio

1:10

UNNO Unified number

462E
