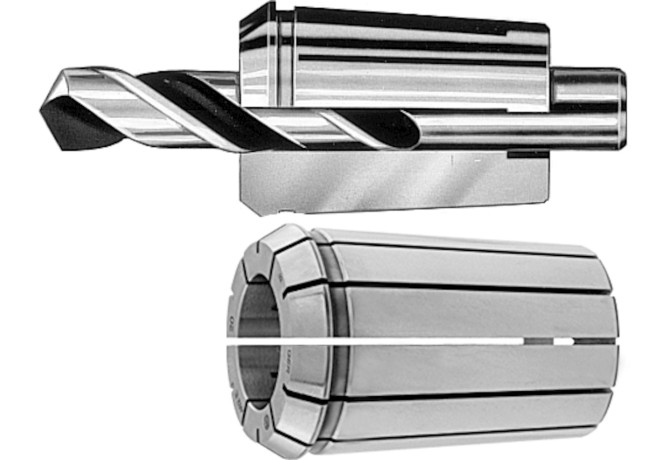

Главная Каталог продукции Toolunited 17 405-01 - Double angle collet 309540 4

309540 4

Артикул: 309540 4

В наличии

В корзину

Описание

Характеристики

BD Body diameter

25.5 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

2 - On two side

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

0040

DCB Connection bore diameter

4 mm

DCBN Connection bore diameter minimum

3.5 mm

DCBX Connection bore diameter maximum

4 mm

Delivery state valid from

11/2/2016

DFC Functional diameter

25.5 mm

DIN

SZD01600195

FamilyProducts

FAHRION OZ collet for chuck

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0040

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00400105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600195

LSCN Clamping length minimum

40 mm

Name Identifying order number

309540 4

OAL Overall length

40 mm

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6388

TG Taper ratio

1:10

UNNO Unified number

415E
